|Product Name:||7206B||Structure:||Angular Contact|
|Seal Type:||Double Shields, Double Seals , Open||Feature:||High Precision,long Life Time|
|Port:||Shanghai Port||Payment Terms:||L/C,TT|
ball bearing contact angle,
motor ball bearing

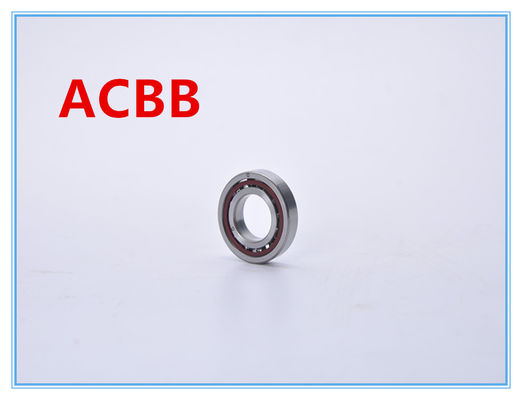

FAG NSK 7206B C3 Single Row Angular Contact Ball Bearing P5 P4 Z2V2 High Performance
|Bearing material||Gcr15, Stainless Steel, Carbon Steel|
|ID*OD*W (mm)||30 x 62 x 16 mm|
|Seal type||double shields|
|Lead time||Stock or 15-30days|
|Vibration Level||V1, V2, V3, V4|
|Grease||Mobil polyrex EM,Kyodo Yushi SRL|
|Payment terms||T/T, L/C|
1. We will strongly support you with special discounts and the best quality. If you need FAG,INA,,NTN,NSK,KOYO,NACHI,TIMKEN,TWB,ZWZ,TVB any brand, pls feel free to contact us. Your brand OEM is also highly welcomed.
2. Normal models with fast delivery.
3. We can help you choose cheapest and efficient shipping ways for you from TNT, DHL, FEDEX, UPS, or special airlines every time. Also by air and by sea can be considered according to your specific quantity.
4. If bearings are broken of quality problems, we will send you new ones to replace and take all responsibility every time. Bearing warranty: 6-12months
Similar to other ball bearings, angular contact ball bearings are composed of inner and outer races, ball complement and bearing cage; however, different to other ball bearings like a deep groove ball bearing, an angular contact ball bearing is designed with axially asymmetric race.
Single row angular contact ball bearings are usually used in machine tool spindles, high-frequency motors, gas turbines, centrifugal separators, the front hub of mini vehicles, differential pinions, etc.
Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis. This means that they are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.
1) Quality level: reach the same level as the Japanese and European bearings
2) Less coefficient of friction
3) High limiting speed
4) Large size range
5) variations of structure
6) Typical applications: speed reducers, automotive applications, construction equipment, pumps and printing presses
Packaging & Shipping;
1, Industry packaging: Plastic tube + Carton + pallet
2, Commercial packaging: Single color box+Carton+pallet
3, According to the requirement of customers'
YGB Bearing Co., Ltd
Add:A-2208,3rd floor,421 weiqing west road,jinshan district,Shanghai,China.
Dear friend, any questions please feel free to contact us, let's learn and grow together in bearing worlds!
Contact Person: tiffany
