Miniature High Precision Ball Bearing For Motors

China Miniature High Precision Ball Bearing For Motors supplier
Miniature High Precision Ball Bearing For Motors supplier Miniature High Precision Ball Bearing For Motors supplier

Large Image :  Miniature High Precision Ball Bearing For Motors

Product Details:

Place of Origin: China,Wuxi
Brand Name: BTB,OEM
Certification: ISO9001:2008
Model Number: 608 ZZ

Payment & Shipping Terms:

Minimum Order Quantity: NO
Price: Negotiable
Packaging Details: plastic tube+individual box+carton
Delivery Time: Stock or 15-30days
Supply Ability: 10000pcs/day
Contact Now
Detailed Product Description
Model: 608 ZZ Size: 8 X 22 X 7 Mm
Material: GCr15/AISI52100/100Cr6 Packing: 10pcs In A Plastic Keg + Carton Or Individual Box + Carton
Grease: Mobil Polyrex EM,Kyodo Yushi SRL Seal Type: Open,double Seals,double Shields

Double Rubber Shielded 6800ZZ Bearing 10x19x5 Slim / Thin Bearing Deep Groove Ball Bearing

Description :

Model608 ZZ
Bearing materialGCr15/AISI52100/100Cr6
ID*OD*W (mm)8 x 22 x 7 mm
Seal typedouble shields
Lead timeStock or 15-30days
Weight(kg)0.0125
Basic dynamic load ratings/C3.4 kN
Basic static load ratings/C01.4 kN
Limiting speed38000 r/min
ClearanceC2,C0,C3,C4,C5
Viberation LevelV1,V2,V3,V4
Precision RatingP0,P6,P5,
MOQNo MOQ
PortShanghai
GreaseMobil polyrex EM,Kyodo Yushi SRL
Payment termsT/T, L/C,Western Union, Paypal

Deep groove ball bearings can be used in widely.For example:used in aotomotive and industrial gearboxes,instruments,electric motors,material handling equipment,mining equitment,power tools,railway,agricultural and household appliances.

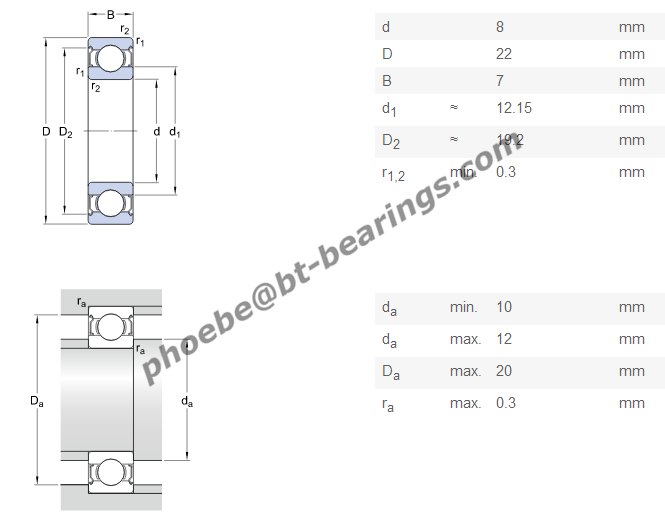

Drawing:
Miniature High Precision Ball Bearing For Motors
Other Models:

Mold No. (New)Mold No.(Old)d(mm)D(mm)Thickness B(mm)Weight (kg)
618/2/HVS682251.50.0002
618/2/P5D1000082251.50.0002
618/2/P522D1000082251.50.0002
618/2/P6E1000082251.50.0002
618/2-Z1060082251.50.0002
618/2.5100008/2.52.561.80.0003
618/2.5/HVP5D100008/2.5X2.561.80.0003
618/2.5/P4C100008/2.52.561.80.0003
618/2.5/P5D100008/2.5X2.561.80.0003
618/2.5/P522D100008/2.52.561.80.0003
618/2.5/P6E100008/2.52.561.80.0003
618/2.5-Z106008/2.52.561.80.0003
618/310000833720.0003
618/3/C22F10000833720.0003
61803-Z1060803172650.0083
61803-Z/P5D1060803172650.0083
618-Z/P6E1060803172650.0083
61803-ZNRTN 172650.0083
61803-ZNTN1150803A172650.0083
61804-ZTN1060803A172650.02
618041000804203270.02
61804/HV 203270.02
61804/P5D1000804203270.02
61804/P6E1000804203270.02
61804/P6Z2 203270.02
61804-2LS 203270.02
61804-2LZ 203270.02
61804-2RS1180804203270.02
61804-2RS/P5D1180804203270.02
61804-2RS/P6E1180804203270.02
61804-2RSV 203270.02
61804-2RZ 203270.02
61804-2RZ/P6 203270.02



Related Products:

Deep groove ball bearings
Linear ball bearings
Pillow block bearings
Clutch release bearings
Cylindrical roller bearings
Needle roller bearings
Thrust ball bearings
Thrust roller bearings
Spherical roller bearings
Angular contact ball bearings

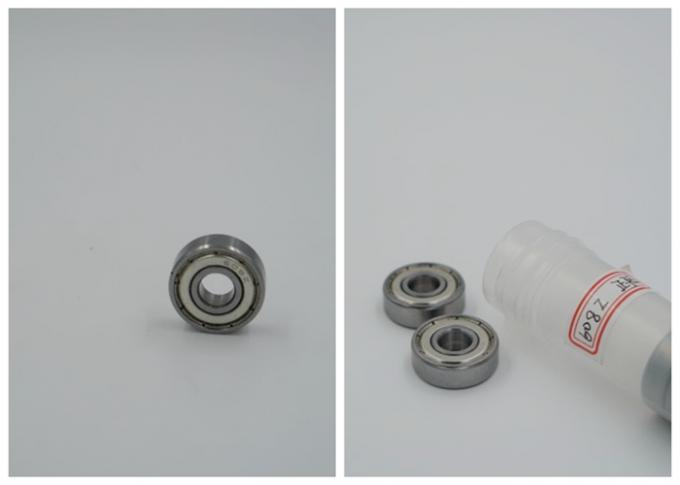

Products photos:
 Miniature High Precision Ball Bearing For Motors

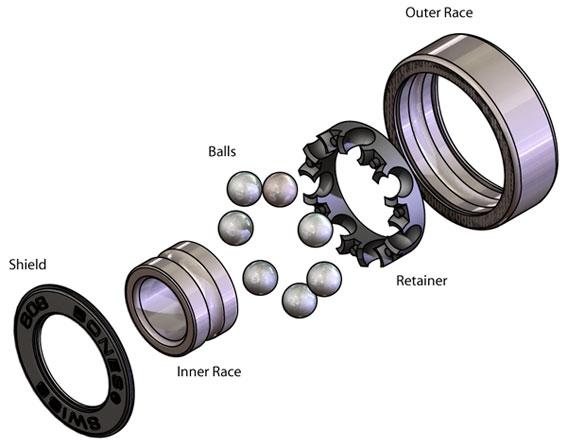

 Details:
