3207A - 2Z Double Row Angular Contact Bearing With High Speed

Good quality Angular Contact Ball Bearing for sales
Thanks for your kind service ,the bearings are very good , hope we will have the long-term cooperation .

—— Mr Brown

i will buy your bearings in the middle of the yeari again , thanks for your cooperation .

—— Mr Prasit

I'm Online Chat Now

3207A - 2Z Double Row Angular Contact Bearing With High Speed

China 3207A - 2Z Double Row Angular Contact Bearing With High Speed supplier

Large Image :  3207A - 2Z Double Row Angular Contact Bearing With High Speed

Product Details:

Place of Origin: China,Wuxi
Brand Name: BTB,OEM
Certification: ISO9001:2008
Model Number: 3207A - 2Z

Payment & Shipping Terms:

Minimum Order Quantity: NO
Price: Negotiable
Packaging Details: plastic tube+individual box+carton
Delivery Time: Stock or 15-30days
Supply Ability: 10000pcs/day
Detailed Product Description
Model: 3207A - 2Z Grease: Mobil Polyrex EM,Kyodo Yushi SRL
Seal Type: Open,double Seals,double Shields Number Of Row: Double
Size(mm): 35 X 72 X 27 Mm Weight(kg): 0.044
Viberation Level: V1,V2,V3,V4 Precision Rating: P0,P6,P5

Double Row high speed 35 x 72 x 27 mm Angular Contact Ball Bearing 3207A - 2Z , high temperature bearings

Description :

Model3207A - 2Z
Bearing materialGCr15/AISI52100/100Cr6
ID*OD*W (mm)35 x 72 x 27 mm
Seal typedouble shields
Lead timeStock or 15-30days
Weight(kg)0.044
Basic dynamic load ratings/C40 kN
Basic static load ratings/C028 kN
Limiting speed9000 r/min
ClearanceC2,C0,C3,C4,C5
Viberation LevelV1,V2,V3,V4
Precision RatingP0,P6,P5,
MOQNo MOQ
PortShanghai
GreaseMobil polyrex EM,Kyodo Yushi SRL
Payment termsT/T, L/C,Western Union, Paypal


Photos:


3207A - 2Z Double Row Angular Contact Bearing With High Speed

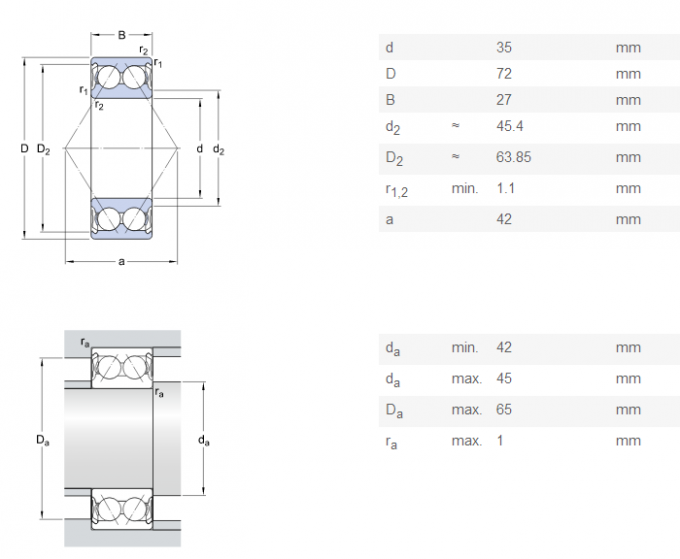

Drawing:
3207A - 2Z Double Row Angular Contact Bearing With High Speed

Other Models:



designationDimensions
d (mm)D (mm)B (mm)
3206 A-2RS1TN9/MT33 *306223.8
3206 A *306223.8
3206 A-2RS1 *306223.8
3206 A-2Z *306223.8
E2.3206 A-2Z306223.8
3306 A-2Z *307230.2
E2.3306 A-2Z307230.2
3306 A-2RS1 *307230.2
3306 A *307230.2
3306 A-2RS1TN9/MT33 *307230.2
3306 ATN9 *307230.2
3306 A-2ZTN9/MT33 *307230.2
3207 A-2RS1TN9/MT33 *357227
3207 A *357227
3207 A-2RS1 *357227
3207 A-2Z *357227
3207 ATN9 *357227
3207 A-2ZTN9/MT33 *357227
E2.3207 A-2Z357227
E2.3307 A-2Z358034.9
3307 DJ1358034.9
3307 A-2Z *358034.9
3307 A-2RS1 *358034.9
3307 A-2RS1TN9/MT33 *358034.9
3307 A *358034.9
3307 A-2ZTN9/MT33 *358034.9
3307 ATN9 *358034.9
3208 A-2ZTN9/MT33 *408030.2
3208 ATN9 *408030.2
3208 A *408030.2
3208 A-2RS1TN9/MT33 *408030.2
3208 A-2RS1 *408030.2
3208 A-2Z *408030.2
E2.3208 A-2Z408030.2
E2.3308 A-2Z409036.5
3308 A-2Z *409036.5
3308 A-2RS1 *409036.5
3308 A-2RS1TN9/MT33 *409036.5
3308 A *409036.5
3308 A-2ZTN9/MT33 *409036.5
3308 ATN9 *409036.5
3308 DTN9409036.5
3308 DNRCBM409036.5
3308 DMA409036.5
3209 A-2ZTN9/MT33 *458530.2
3209 ATN9 *458530.2
3209 A-2RS1TN9/MT33 *458530.2
3209 A *458530.2
3209 A-2RS1 *458530.2
3209 A-2Z *458530.2
E2.3209 A-2Z458530.2
E2.3309 A-2Z4510039.7
3309 A-2Z *4510039.7
3309 A-2RS1 *4510039.7
3309 A *4510039.7
3309 ATN9 *4510039.7
3309 DMA4510039.7
3309 DNRCBM4510039.7
3210 A-2ZTN9/MT33 *509030.2
3210 ATN9 *509030.2



Advantages :
Ultra clean steel to extend bearing life by up to 80%
Advanced grade technology
Quiet and smooth operation even at high speed
Super finished raceways
Offer products in 15,25 and 40 degree angles
Available in arrange of Polyamide, steel and brass cage assembles

Application:
Application: Angular Contact Ball Bearing is widely used in cars, compressors, construction, electric motors, food industry, home appliances etc. As a rolling element, it turns the world.
