Design Classical High Speed Self Aligning Ball Bearing For Motorcycles 1206

China Design Classical High Speed Self Aligning Ball Bearing For Motorcycles 1206 supplier

Large Image :  Design Classical High Speed Self Aligning Ball Bearing For Motorcycles 1206

Product Details:

Place of Origin: China
Brand Name: BTB,OEM
Certification: ISO9001:2008
Model Number: 1206

Payment & Shipping Terms:

Minimum Order Quantity: NO
Price: Negotiable
Packaging Details: plastic tube+individual box+carton
Supply Ability: 10000pcs/day
Detailed Product Description
Model: 1206 Payment Terms: L/C,TT,Paypal
Weight (kg): 0.22 Port: Shanghai
Size: 30 X 62 X 16 Mm Limiting Speed: 15000 R/min

Design classical high speed self aligning ball bearing for motorcycles 1206


Model1206
Bearing materialGCr15/AISI52100/100Cr6
ID*OD*W (mm)30 x 62 x 16 mm
Seal typedouble shields
Lead timeStock or 15-30days
Weight(kg)   0.22
Basic dynamic load ratings/C15.6 kN
Basic static load ratings/C04.6 kN
Limiting speed15000 r/min
ClearanceC2,C0,C3,C4,C5
Viberation LevelV1,V2,V3,V4
Precision RatingP0,P6,P5,
MOQNo MOQ
PortShanghai
GreaseMobil polyrex EM,Kyodo Yushi SRL
Payment termsT/T, L/C,Western Union, Paypal


Self-aligning ball bearing
Aligning ball bearings have cylindrical and tapered bore two structures. Cage made of steel sheet , synthetic resin. It features an outer ring raceway spherical shape , with auto-Mind , can compensate for misalignment and shaft deflection caused by the error , but the inner and outer rings relative inclination of not more than 3 degrees.
Self-aligning ball bearings, are constructed with the inner ring and ball assembly contained within an outer ring that has a spherical raceway. This construction allows the bearing to tolerate a small angular misalignment resulting from shaft or housing deflections or improper mounting. The bearing was used mainly in bearing arrangements with very long shafts, such as transmission shafts in textile factories. One drawback of the self-aligning ball bearings is a limited load rating, as the outer raceway has very low osculation (radius is much larger than ball radius). This led to the invention of thespherical roller bearing, which has a similar design, but use rollers instead of balls.

APPLICATION
Applied in heavy loading and impact loading, such as precision instruments, low noise machine, automobile, motorcycle, metallurgy, rolling mill, mine, petroleum, paper making, cement, the sugar industry and etc. Self-Aligning Ball Bearings are used for commercial ground shafting applications.

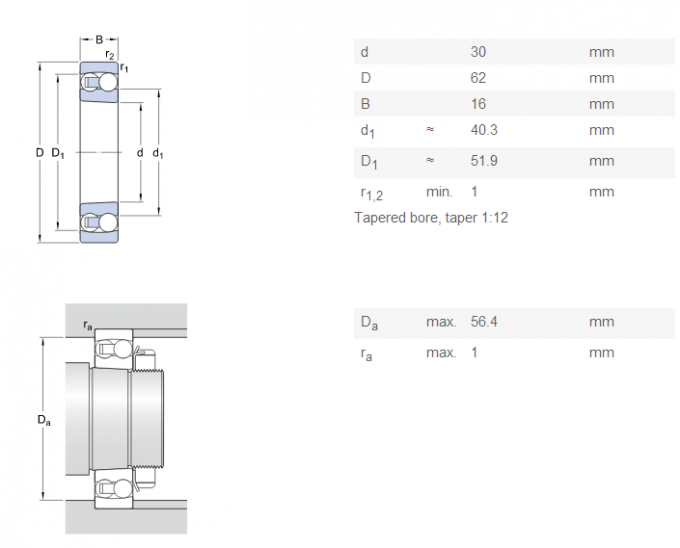

Drawing:
Design Classical High Speed Self Aligning Ball Bearing For Motorcycles 1206

Specification:
1.High precision bearings
2.ISO standard bearing
3.High quality and copmetitive price
4.Many famous brand can be available
5.Low noise and long life

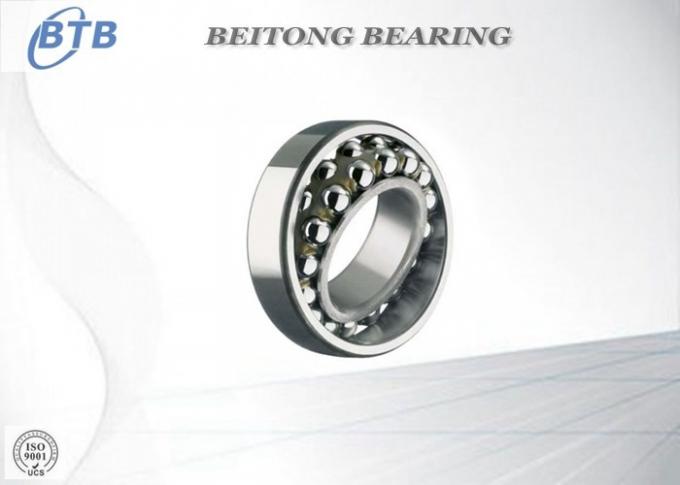

Product photos:
Design Classical High Speed Self Aligning Ball Bearing For Motorcycles 1206

Packaging
1 . barreled package+outer carton+pallets
2 . single box+outer carton+pallets
3 . tube package+middle box+outer carton+pallets
4 . According to your requirement

Series Model

DesignationDimensionBasic radial load ratingSpeed rating
dDW
mmmmmmdynamic Cstatic C0greaseoil
   NNrpmrpm
1200E10309553011802400030000
1201E123210624014302200028000
1202E153511741017601900024000
1203E174012884022001800022000
1204E2047141270034001500018000
1205E2552151430040001300016000
1206E3062161560046501000013000
1207E357217190006000900011000
1208E408018199006950850010000
1209E45851922900780075009000
1210E50902026500915070008500
1211E5510021276001060063007500
1212E6011022312001220056006700
1213E6512023351001400053006300
12147012524345001370050006000
12157513025390001560048005600
12168014026397001700045005300
12178515028488002080040004800
12189016030572002360038004500
12199517032637002700036004300
122010018034689003000034004000
122110519036741003250032003800
122211020038884003900030003600
1224120215421190005300028003400
1226130230461270005850026003200


FAQ:
1.Q:Are you a factory or trading company?
A:Beitong Bearing is specialized in manufacturing and exporting bearings.
We have own factory and warehouse.

2.Q:Can I get some samples and do you offer the sample free?
A:Yes, sure, we are honored to offer you samples.Can you buy a ticket ?

3.Q:What is the payment?
A: 30% T/T In Advance, 70% T/T Against Copy Of B/L
B: 100% L/C At Sight

4.Q:What is the MOQ for bearing?
A: Our MOQ is 1 pc.

5.Q:What kind of service you can offer?
A:Technology support;Installation guidance;OEM.
