Chrome Steel Gcr15 Fag Spherical Roller Bearing 22309E 45 X 100 X 36 Mm

Good quality Angular Contact Ball Bearing for sales
Thanks for your kind service ,the bearings are very good , hope we will have the long-term cooperation .

—— Mr Brown

i will buy your bearings in the middle of the yeari again , thanks for your cooperation .

—— Mr Prasit

I'm Online Chat Now

Chrome Steel Gcr15 Fag Spherical Roller Bearing 22309E 45 X 100 X 36 Mm

China Chrome Steel Gcr15 Fag Spherical Roller Bearing 22309E 45 X 100 X 36 Mm supplier

Large Image :  Chrome Steel Gcr15 Fag Spherical Roller Bearing 22309E 45 X 100 X 36 Mm

Product Details:

Place of Origin: China
Brand Name: BTB,OEM
Certification: ISO9001:2008
Model Number: 22309E

Payment & Shipping Terms:

Minimum Order Quantity: NO
Price: Negotiable
Packaging Details: plastic tube+individual box+carton
Supply Ability: 10000pcs/day
Detailed Product Description
Model: 22309E Payment Terms: L/C,TT,paypal
Weight: 1.4 Size: 45 X 100 X 36 Mm
MOQ: NO Grease: Mobil Polyrex EM,Kyodo Yushi SRL
Basic Dynamic Load Ratings/C: 190 KN Basic Static Load Ratings/C0: 176 KN

E series chrome steel Gcr15 spherical roller bearing 22309E 45 x 100 x 36 mm

Description:

Model22309E
Bearing materialGCr15/AISI52100/100Cr6
ID*OD*W (mm)45 x 100 x 36 mm
Seal typedouble shields . open ,double shield
Lead timeStock or 15-30days
Weight(kg)1.4
Basic dynamic load ratings/C190 kN
Basic static load ratings/C0176 kN
Limiting speed7000 r/min
ClearanceC2,C0,C3,C4,C5
Viberation LevelV1,V2,V3,V4
Precision RatingP0,P6,P5,
MOQNo MOQ
PortShanghai
GreaseMobil polyrex EM,Kyodo Yushi SRL
Payment termsT/T, L/C,Western Union, Paypal

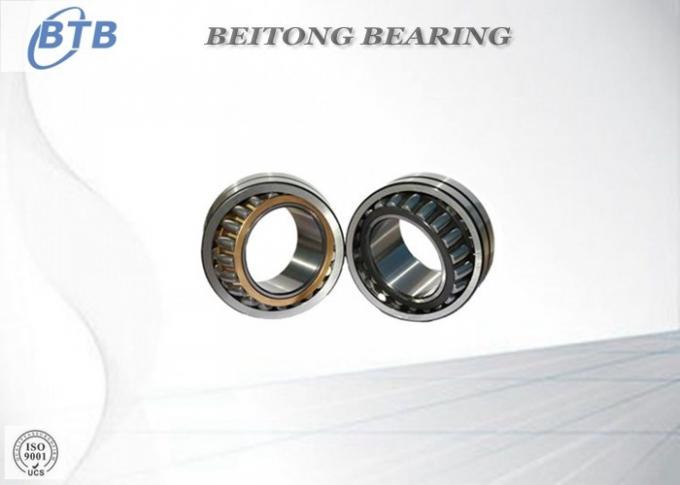

Product photos:
Chrome Steel Gcr15 Fag Spherical Roller Bearing 22309E 45 X 100 X 36 Mm

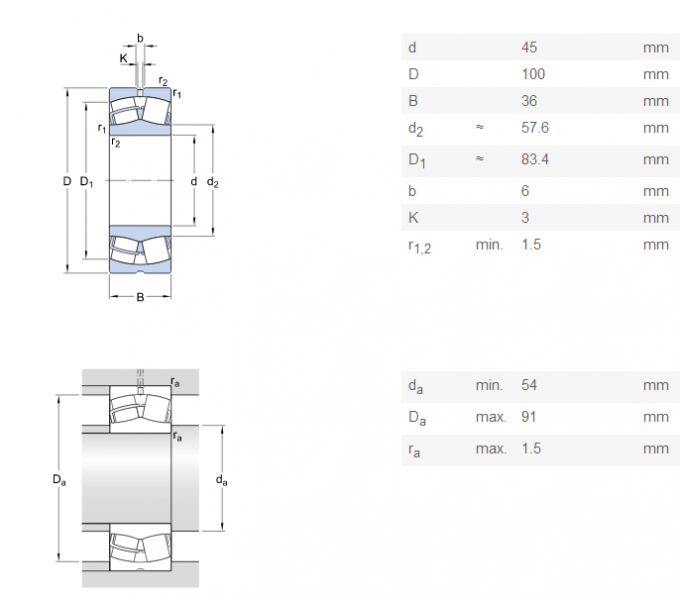

Drawing:
Chrome Steel Gcr15 Fag Spherical Roller Bearing 22309E 45 X 100 X 36 Mm


Series Models:

dDBCCor/minL/PType
35802398,59080001100022208 EK + AH 308 *
3590231071087000950021308 EK + AH 308 *
3590331551406000800022308 EK + AH 2308 *
4085231049875001000022209 EK + AH 309 *
40100251291276300850021309 EK + AH 309 *
40100361901835300700022309 EK + AH 2309 *
4590231071087000950022210 EK + AHX 310 *
45110271591665600750021310 EK + AHX 310 *
45110402282244800630022310 EK + AHX 2310 *
50100251291276300850022211 EK + AHX 311 *
50120291591665600750021311 EK + AHX 311 *
50120432802804300560022311 EK + AHX 2311 *
55110281591665600750022212 EK + AHX 312 *
55130312172404800630021312 EK + AHX 312 *
55130463253354000530022312 EK + AHX 2312 *
60120311982165000700022213 EK + AH 313 G *
60140332432704300600021313 EK + AH 313 G *
60140483573603800500022313 EK + AH 2313 G *
65125312132285000670022214 EK + AH 314 G *
65150352913254000560021314 EK + AH 314 G *
65150514134303400450022314 EK + AHX 2314 G *
70130312172404800630022215 EK + AH 315 G *
70160372913254000560021315 EK + AH 315 G *
70160554624753200430022315 EK + AHX 2315 G *
75140332432704300600022216 EK + AH 316 *
75170393313753800530021316 EK + AH 316 *
75170585165403000400022316 EK + AHX 2316 *
80150362913254000560022217 EK + AHX 317 *
80180413313753800530021317 EK + AHX 317 *
80180605776202800380022317 EK + AHX 2317 *
85160403313753800530022218 EK + AHX 318 *
8516052,43724402800380023218 CCK/W33 + AHX 3218 *
85190433934503600480021318 EK + AHX 318 *
85190646376952600360022318 EK + AHX 2318 *


Application:
printing presses, paper mills or coaters in high precision execution
very arduous operating conditions, e. g.continuous casters
high temperature applications
mounting with loose fit on roll necks
railway vehicles

Payment:
1) TT, 30% deposit , 70% before shippment.
2) L/C at sight. (high bank charge, not suggest , but acceptable )

Delivery:
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Chrome Steel Gcr15 Fag Spherical Roller Bearing 22309E 45 X 100 X 36 Mm
