High Speed Self Aligning Ball Bearing Open Open Sealed Type 2303

China High Speed Self Aligning Ball Bearing Open Open Sealed Type 2303 supplier

Large Image :  High Speed Self Aligning Ball Bearing Open Open Sealed Type 2303

Product Details:

Place of Origin: China,Wuxi
Brand Name: BTB,OEM
Certification: ISO9001:2008
Model Number: 2303

Payment & Shipping Terms:

Minimum Order Quantity: NO
Price: Negotiable
Packaging Details: plastic tube+individual box+carton
Delivery Time: Stock or 15-30days
Supply Ability: 10000pcs/day
Detailed Product Description
Model: 2303 Size: 17 X 47 X 19mm
Seal Type: Open,double Seals,double Shields Lead Time: Stock Or 15-30days
Weight(kg): 0.16 Grease: Mobil Polyrex EM,Kyodo Yushi SRL
Clearance: C2,C0,C3,C4,C5

Self aligning ball bearing 2303 with low price and good quality for car and motorcycle

Description :

Model 2303
Bearing materialGCr15/AISI52100/100Cr6
ID*OD*W (mm)17 x 47 x 19mm
Seal typedouble shields
Lead timeStock or 15-30days
Weight(kg)0.16
Basic dynamic load ratings/C14.3 kN
Basic static load ratings/C03.6 kN
Limiting speed22000 r/min
ClearanceC2,C0,C3,C4,C5
Viberation LevelV1,V2,V3,V4
Precision RatingP0,P6,P5,
MOQNo MOQ
PortShanghai
GreaseMobil polyrex EM,Kyodo Yushi SRL
Payment termsT/T, L/C,Western Union, Paypal


Brief introduction
The components of the self aligning ball bearing include two rows of balls, a cage, an inner ring, and an outer ring with a common concave sphered raceway.This type of bearings is self-aligning and insensitive to angular misalignments of the shaft relative to the housing. The bearings are produced in several design: open bearings with the basic design, sealed bearings, open bearings with an extended inner ring.The self alignning ball bearings have the lowest friction of all rolling bearings.The bearings are available with a cylindrical bore or with a tapered bore in certain size ranges. Self-aligning ball bearings have two rows of balls and a common concave sphered raceway in the outer ring. The bearing is consequently self-aligning and insensitive to angular misalignments of the shaft relative to the housing. It is particularly suitable for applications where considerable shaft deflections or misalignment are to be expected. Additionally, the self-aligning ball bearing has the lowest friction of all rolling bearings, which enables it to run cooler even at high speeds.

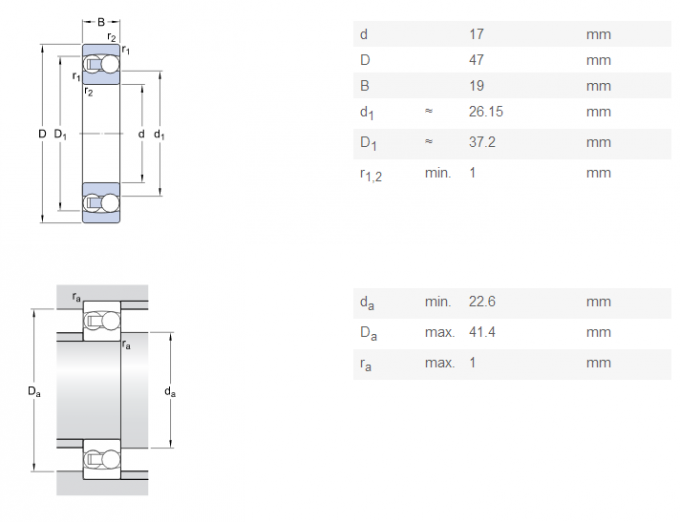

Drawing
High Speed Self Aligning Ball Bearing Open Open Sealed Type 2303

Other models:


Itemold itemdDh
(mm)
CrCorGreaseoilweight
(mm)(mm)(kN)(kN)(r/min)(r/min)(kg)
230016001035179.32.118000240000.085
230116011237179.72.316000220000.095
2302160215421712.12.914000200000.114
2303160317471914.53.613000180000.158
23041604205221184.711000150000.209
2305160525622424.46.69400130000.335
2306160630722731.48.758000110000.5
2307160735803139.411.3710098000.675
2308160840903344.913.5620086000.925
23091609451003654.416.7560077001.23
2205150525521812.63.312000150000.163
2208150840802322.522.47.4760093000.505
2209150945852323.38.15700085000.545
2210151050902323.38.5650079000.59
22111511551002526.810580071000.81
22121512601102834.112.6530065001.09
22131513651203143.516.4490059001.46
2214151470125314417450056001.62
22151515751303144.217.8430053001.62
2216151680140334919.9410050002.01
22171517851503658.323.6380046002.52
22181518901604067.727.2350043003.4
222015201001804680.934310038004.98

Typical applications
Aligning ball bearings are widely applied to heavy loads and shock load, precision instruments, low noise motors, automobiles, motorcycles, metallurgy, mill, mining, petroleum, paper, cement, squeezed sugar industry and general machinery.
