High Precision Stainless Ball Bearings With Flange F6800ZZ 8x16x5mm

China High Precision Stainless Ball Bearings With Flange F6800ZZ 8x16x5mm supplier

Large Image :  High Precision Stainless Ball Bearings With Flange F6800ZZ 8x16x5mm

Product Details:

Place of Origin: China
Brand Name: BTB,OEM
Certification: ISO9001:2008
Model Number: F6800ZZ

Payment & Shipping Terms:

Minimum Order Quantity: NO
Price: Negotiable
Packaging Details: plastic tube+individual box+carton
Supply Ability: 10000pcs/day
Detailed Product Description
Model: F6800ZZ Structure: Deep Groove
Size: 8x16x5mm Precision Grade: P0,P6,P5
Payment Terms: L/C,TT,Paypal Sample: Available

Miniature F6800ZZ with flange ball bearing deep groove ball bearing used for machine tools

Description:


Size:F688ZZ, F688-2RS, F688/OPEN
Inside Diameter:8mm
Outside Diameter:16mm
Width:5mm
Material:Chrome steel
Seals / Shields:ZZ, 2RS, OPEN
Inch Diameter:0.315X0.6299X0.1969
Max Load:Dyn <Cr(N)>:1252
 Stat<Cor(N)>:592
RPM of grease Bearings (x1000):36
RPM of oil Bearings (x1000) :43
Quantity of balls:9 pcs
Diameter of balls:3/32"
Min.Raius(rs):0.20mm


Flanged miniature bearings are available open, shielded or sealed.with bore sizes as small as mm. The smaller sizes are sometimes referred to as instrument bearings.Available in SAE52100 chrome steel and AISI440C or KS440 (ACD34/X65Cr13) stainless steel, these metric sized deep groove radial flanged miniature bearings can withstand heavy radial loads and moderate thrust loadsin both directions. Flanged miniature bearings have an outer ring flange to facilitate location in a housing .Many of these flanged miniature bearings can be supplied to order with ceramic balls (hybrid bearings).

Different materials:
Stainless Steel Bearings
Chrome Steel Bearings
Ceramic Bearings

Specification:
1.High precision bearings
2.ISO standard bearing
3.High quality and copmetitive price
4.Many famous brand can be available
5.Low noise and long life

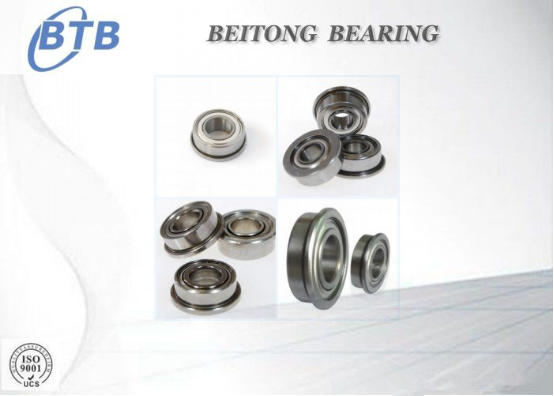

Product photos:
High Precision Stainless Ball Bearings With Flange F6800ZZ 8x16x5mm
Packaging & Shipping;
Packaging Details:
Normal Packing: 10 pcs in a plastic tube,10 tubes in one paper box.
Industrial-packing: 10 pcs in a soft shrink-wrap weld with printing stick-label as Brand .
Supply OEM Packing: According to your requirements.

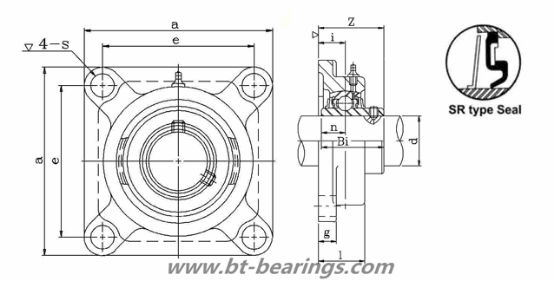

Drawing:
High Precision Stainless Ball Bearings With Flange F6800ZZ 8x16x5mm

Model  Frange Diameter (D1)Width(b)Width of flange(c)Cr(N)Cor(N)Permit Speeding
(d)(D)openzzopenzzopenzzGreaseOil
  *1000rpm
F682zz256.11.52.30.50.61695085100
MF52zz256.222.50.60.61695085100
F692zz267.52.330.60.8330997590
MF62zz267.22.52.50.6-330997590
MF72zz278.22.830.60.63861296375
F602zz278.52.83.50.70.93861296071
F682Xzz2.567.11.82.60.50.8209747180
F692Xzz2.578.52.53.50.70.93861296375
MF82X2.589.22.5-0.6-5581806067
F602Xzz2.589.52.840.70.95521776071
MF63zz367.222.50.60.6209747180
F683zz378.1230.50.83111126375
MF83zz389.22.530.6-3951416067
F693zz389.5340.70.95581806067
MF93zz3910.210.62.540.60.85711895667
F603zz3910.5350.7-5711895667
F623zz31011.544116312195060
MF74zz478.222.50.60.62551086067
MF84zz489.2230.60.63951415667


FAQ:
1.Q:Are you a factory or trading company?
A:Beitong Bearing is specialized in manufacturing and exporting bearings.
We have own factory and warehouse.

2.Q:Can I get some samples and do you offer the sample free?
A:Yes, sure, we are honored to offer you samples.Can you buy a ticket ?

3.Q:What is the payment?
A: 30% T/T In Advance, 70% T/T Against Copy Of B/L
B: 100% L/C At Sight

4.Q:What is the MOQ for bearing?
A: Our MOQ is 1 pc.

5.Q:What kind of service you can offer?
A:Technology support;Installation guidance;OEM.
