UC212 High Precision Agricultural Machinery Bearing Pillow Block

China UC212 High Precision Agricultural Machinery Bearing Pillow Block supplier

Large Image :  UC212 High Precision Agricultural Machinery Bearing Pillow Block

Product Details:

Place of Origin: China
Brand Name: BTB,OEM
Certification: ISO9001:2008
Model Number: UCF210

Payment & Shipping Terms:

Minimum Order Quantity: NO
Price: Negotiable
Packaging Details: plastic tube+individual box+carton
Supply Ability: 10000pcs/day
Detailed Product Description
Features: High Precision, High Speed, Long Life, High Reliability, Low Noise , Reduce Friction Model: UCF210
Structure: Pillow Block Material: Bearing Steel (GCr15)
Payment Terms: L/C,TT,paypal Sample: Available
Port: Shanghai Port Clearance: C0 C1 C2 C3 C4 C5

The best UC212 Pillow block bearing apply to Agricultural machinery bearing

UC212 High Precision Agricultural Machinery Bearing Pillow Block
Pillow block bearing Application:
Agricultural and textile machinery, construction equipments, conveyor system,
also the processing and packaging food machine

Pillow block bearing Features:
1. Series:UCF series,UCP series,UCFL series,UC series,etc.
2. Tolerance:ABEC-1 ABEC-3 ABEC-5
3. Bore size:12 to 100 mm;Outside diameter:47 to 215 mm
4. Sealing:OPEN,Z,ZZ,RZ,2RZ,RS,2RS
5. Noise Level:EMQ V1 Z2,EMQ V2 Z3,EMQ V3 Z4,EMQ V4
6. Low vibration, Low noise, High precision and durable
7. Material:Chrome steel ,carbon steel ,Gcr15
Application:
Pillow block bearing is widely used in various of machinery, especially in food machine,
and they also can be used into pharmaceutical machinery, conveyering systems,
photo & film processing machinery, spin machine,dying & printing machinery,etc.
Features:
1.Series:UCF series,UCP series,UCFL series,UC series,etc.
2.Tolerance:ABEC-1 ABEC-3 ABEC-5
3.Bore size:12 to 100 mm;Outside diameter:47 to 215 mm
4.Sealing:OPEN,Z,ZZ,RZ,2RZ,RS,2RS
5.Noise Level:EMQ V1 Z2,EMQ V2 Z3,EMQ V3 Z4,EMQ V4
6.Low vibration, Low noise, High precision and durable
7.Material:Chrome steel ,carbon steel ,Gcr15

Other Models:

Unit NumberHousing NumberBearing NumberShaft SizeDimensionBasic Load Ratings
HLJCr Cor
inch.mminch.mminch.mminch.KN
UCPX05PX05UCX052544.42001/3/41592006/1/41194-11/1619.511.3
UCP305P305UC30525451-49/641752006/7/81325-3/1621.210.9
UCPX06PX06UCX063047.62001/7/81752006/7/8127525.715.4
UCP306P306UC30630501-31/321807-3/321405-1/226.715
UCPX07PX07UCX0735542002/1/820381445-21/3229.117.8
UCP307P307UC30735562-13/642108-9/321606-5/1633.419.3
UCPX08PX08UCX084058.72002/5/162222008/3/41566-5/3234.121.3
UCP308P308UC30840602-23/642208-21/321706-11/1640.724
UCPX09PX09UCX094558.72002/5/162222008/3/41566-5/3235.123.3
UCP309P309UC30945672-41/642459-21/321907-15/3248.929.5
UCPX10PX10UCX105063.52002/1/22412009/1/21716-23/3243.429.4
UCP310P310UC31050752-61/6427510-13/162128-11/326238.3
UCPX11PX11UCX115569.82002/3/42602010/1/41847-1/452.436.2
UCP311P311UC31155803-5/3231012-7/322369-9/3271.645
UCPX12PX12UCX126076.232862011/1/4203857.240.1
UCP312P312UC31260853-11/32330132509-27/3281.952.2
UCPX13PX13UCX136576.232862011/1/4203862.244.1
UCP313P313UC31365903-35/643402013/3/826010-1/492.759.9
UCPX14PX14UCX147088.92003/1/233013229967.448.3
UCP314P314UC31470953-47/643602014/3/1628011-1/3210468.2
UCPX15PX15UCX157588.92003/1/233013229972.753
UCP315P315UC315751003-15/1638014-31/3229011-13/3211377.2
UCPX16PX16UCX1680101.643811528311-1/88461.9
UCP316P316UC316801064-11/644002015/3/430011-13/1612386.7
UCPX17PX17UCX1785101.643811528311-1/896.171.5
UCP317P317UC317851124-13/3242016-17/3232012-19/3213396.8
UCPX18PX18UCX1890101.643811528311-1/810981.9
UCP318P318UC318901184-41/6443016-15/1633013143107
UCP319P319UC319951254-59/644702018/1/236014-3/16153119
UCPX20PX20UCX2010012754321733713-1/4133105
UCP320P320UC3201001405-33/6449019-9/3238014-31/32173141
UCP321P321UC3211051405-33/6449019-9/3238014-31/32184153
UCP322P322UC3221101505-29/3252020-15/3240015-3/4205180
UCP324P324UC3241201606-19/645702022/7/1645017-23/32207185
UCP326P326UC3261301807-3/326002023/5/848018-29/32229214
UCP328P328UC3281402002007/7/862024-13/3250019-11/16253246

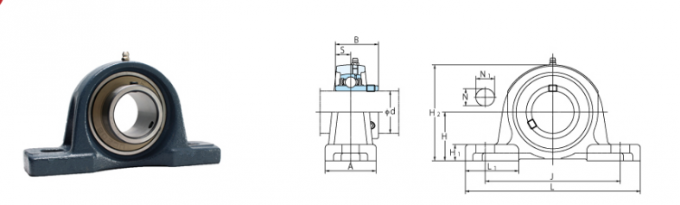

Drawing:
UC212 High Precision Agricultural Machinery Bearing Pillow Block


Packaging & Shipping;
Packaging Details
1, Industry packaging: Plastic tube + Carton + pallet
2, Commercial packaging: Single color box+Carton+pallet
3, According to the requirement of customers'

Our company:

The company has two production bases under the Holding Cooperation which involves in production development, production, applications and sales areas. Therefore, we have a unique and profound understanding of the bearings industry.
UC212 High Precision Agricultural Machinery Bearing Pillow Block

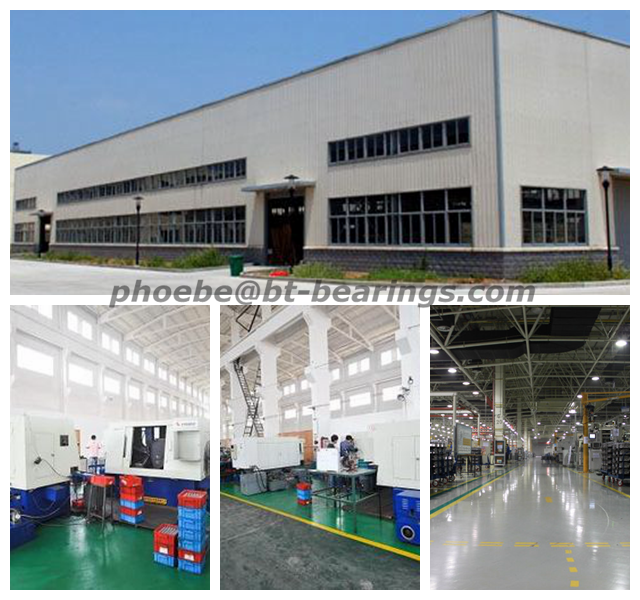

Company Photos:
UC212 High Precision Agricultural Machinery Bearing Pillow Block
