100BAR10 S TYN SUL P4

100BAR10 S TYN SUL P4
100BAR10 S TYN SUL P4 100BAR10 S TYN SUL P4 100BAR10 S TYN SUL P4

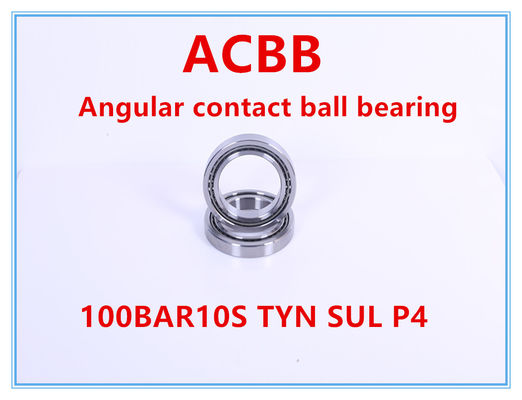

Large Image :  100BAR10 S TYN SUL P4

Product Details:
Place of Origin: China
Brand Name: ACBB
Certification: ISO9001 IATF16949
Model Number: 100BAR10 S TYN SUL P4
Payment & Shipping Terms:
Minimum Order Quantity: 20 PCS
Packaging Details: Company brand packaging.

100BAR10 S TYN SUL P4

Description
Product Name: Angular Contact Ball Bearing Model Number: 100BAR10 S TYN SUL P4
Characteristic: High Speed And High Rigidity Rotational Speed: 4000RPM-6000RPM
Angle: 30º Preload: Light Preload
Rolling Body: Steel Ball Holder: Nylon Holder

Angular Contact Ball Bearing 100BAR10STYNSULP4  (in addition to DB, DT, TBT, QBC and other matching methods) is mainly used on the spindle of CNC machine tools. The operating speed reaches 4000 to 6000 rpm. Imported materials, imported G5 grade steel balls, and Kluberspeed NBU15 grease are used, which have the advantages of high rigidity, high precision, high speed, etc.



BAR, BTR Series Thrust Angular Contact Ball Bearings
Bearing No Dimensions(mm) (KN) (KN) a(mm) (Kg) (RPM)
d D 2B rs(min) rs1(min) Ca Coa Grease Oil
50BAR10S 50 80 28.5 1 0.6 14.7 27.7 18.4 25.7 0.272 11600 14700
50BAR10H 50 80 28.5 1 0.6 12.6 0.257 13100 16200
50BTR10S 50 80 28.5 1 0.6 17.4 31.5 21.5 34.1 0.272 10000 13100
50BTR10H 50 80 28.5 1 0.6 15.5 0.257 11600 14700
55BAR10S 55 90 33 1.1 0.6 18.2 35 23.4 28.9 0.412 10400 13200
55BAR10H 55 90 33 1.1 0.6 16 0.391 11800 14500
55BTR10S 55 90 33 1.1 0.6 21.6 40 26.4 38.3 0.412 9000 11800
55BTR10H 55 90 33 1.1 0.6 19.7 0.391 10400 13200
60BAR10S 60 95 33 1.1 0.6 18.9 38 25.5 30.4 0.42 9700 12300
60BAR10H 60 95 33 1.1 0.6 17.5 0.397 11000 13600
60BTR10S 60 95 33 1.1 0.6 22.4 43.5 25.8 40.4 0.42 8400 11000
60BTR10H 60 95 33 1.1 0.6 21.5 0.397 9700 12300
65BAR10S 65 100 33 1.1 0.6 19.5 41.5 27.7 31.8 0.447 9100 11600
65BAR10H 65 100 33 1.1 0.6 19 0.406 10400 12800
65BTR10S 65 100 33 1.1 0.6 23.1 47 27.3 42.5 0.447 7900 10400
65BTR10H 65 100 33 1.1 0.6 23.3 0.406 9100 11600
70BAR10S 70 110 36 1.1 0.6 26.9 55 37.5 34.7 0.601 8400 10600
70BAR10H 70 110 36 1.1 0.6 25.5 0.561 9500 11700
70BTR10S 70 110 36 1.1 0.6 32 63 35 46.3 0.601 7300 9500
70BTR10H 70 110 36 1.1 0.6 31.5 0.561 8400 10600
75BAR10S 75 115 36 1.1 0.6 27.3 58 39 36.1 0.634 7900 10000
75BAR10H 75 115 36 1.1 0.6 26.7 0.592 9000 11100
75BTR10S 75 115 36 1.1 0.6 32.5 65.5 36.5 48.4 0.634 6900 9000
75BTR10H 75 115 36 1.1 0.6 33 0.592 7900 10000
80BAR10S 80 125 40.5 1.1 0.6 32 68.5 46.5 39.4 0.875 7400 9300
80BAR10H 80 125 40.5 1.1 0.6 32 0.821 8300 10300
80BTR10S 80 125 40.5 1.1 0.6 38 78 43 52.7 0.875 6400 8300
80BTR10H 80 125 40.5 1.1 0.6 39 0.821 7400 9300
85BAR10S 85 130 40.5 1.1 0.6 32.5 71.5 48.5 41 0.971 7000 8900
85BAR10H 85 130 40.5 1.1 0.6 33 0.915 8000 9800
85BTR10S 85 130 40.5 1.1 0.6 38.5 81.5 50.5 55.2 0.971 6100 8000
85BTR10H 85 130 40.5 1.1 0.6 41 0.915 7000 8900
90BAR10S 90 140 45 1.5 1 42.5 92.5 62.5 44.4 1.198 6600 8300
90BAR10H 90 140 45 1.5 1 43 1.124 7400 9200
90BTR10S 90 140 45 1.5 1 50 105 58 59.5 1.198 5700 7400
90BTR10H 90 140 45 1.5 1 52.5 1.124 6600 8300
95BAR10S 95 145 45 1.5 1 43 96.5 65 45.5 1.32 6300 8000
95BAR10H 95 145 45 1.5 1 44.5 1.231 7100 8800
95BTR10S 95 145 45 1.5 1 51 110 69 61 1.32 5500 7100
95BTR10H 95 145 45 1.5 1 55 1.231 6300 8000
100BAR10S 100 150 45 1.5 1 43.5 100 68 47.3 1.399 6000 7600
100BAR10H 100 150 45 1.5 1 46.5 1.307 6800 8400





100BAR10 S TYN SUL P4 0
