Product Details:
|
| Product Name: | Angular Contact Ball Bearing | Model Number: | 7008 C P4A GA |
|---|---|---|---|
| Characteristic: | High Speed And High Rigidity | Rotational Speed: | 12000RPM-14000RPM |
| Angle: | C/AC/A5 | Preload: | Light Preload |
| Rolling Body: | Steel Ball | Cage Cage: | Nylon Holder |

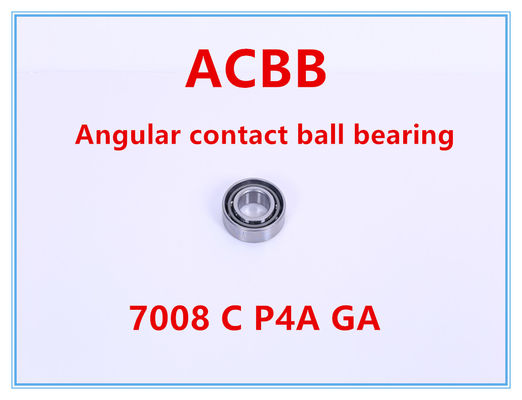

Angular Contact Ball Bearing 7008 C P4A GA (in addition to DB, DT, TBT, QBC and other matching methods) is mainly used on the spindle of CNC machine tools. The operating speed reaches 12000 to 14000 rpm. Imported materials, imported G5 grade steel balls, and Kluberspeed NBU15 grease are used, which have the advantages of high rigidity, high precision, high speed, etc.
| 70 Series Angular Contact Ball Bearing | ||||||||||||
| Bearing No | Dimensions(mm) | (KN) BasicRatedload | (RPM) Ball speed limit |
(RPM) Ceramic Ball limit speed | (N) Preload | |||||||
| d | D | B | Cr | Cor | Grease Lubrication | Oil Lubrication | Grease Lubrication | Oil Lubrication | A | B | C | |
| 706C | 6 | 17 | 6 | 2.36 | 0.97 | 95000 | 160000 | 120000 | 180000 | 12 | 38 | 76 |
| 706AC | 6 | 17 | 6 | 2.28 | 0.93 | 85000 | 140000 | 110000 | 160000 | 14 | 42 | 84 |
| 708C | 8 | 22 | 7 | 3.80 | 1.73 | 75000 | 120000 | 95000 | 160000 | 14 | 42 | 80 |
| 708AC | 8 | 22 | 7 | 3.75 | 1.66 | 67000 | 100000 | 80000 | 130000 | 16 | 46 | 98 |
| 7000C | 10 | 26 | 8 | 4.25 | 2.08 | 60000 | 90000 | 80000 | 130000 | 17 | 67 | 145 |
| 7000AC | 10 | 26 | 8 | 4.05 | 2.00 | 56000 | 85000 | 67000 | 100000 | 22 | 100 | 224 |
| 7001C | 12 | 28 | 8 | 4.75 | 2.60 | 56000 | 85000 | 70000 | 110000 | 19 | 74 | 161 |
| 7001AC | 12 | 28 | 8 | 4.55 | 2.50 | 50000 | 75000 | 60000 | 90000 | 23 | 110 | 250 |
| 7002C | 15 | 32 | 9 | 6.20 | 3.40 | 48000 | 70000 | 60000 | 90000 | 28 | 102 | 216 |
| 7002AC | 15 | 32 | 9 | 6.00 | 3.25 | 43000 | 63000 | 50000 | 75000 | 36 | 154 | 344 |
| 7003C | 17 | 35 | 10 | 8.65 | 4.90 | 43000 | 63000 | 53000 | 80000 | 41 | 146 | 308 |
| 7003AC | 17 | 35 | 10 | 8.30 | 4.75 | 38000 | 56000 | 45000 | 67000 | 54 | 221 | 487 |
| 7004C | 20 | 42 | 12 | 10.40 | 6.00 | 36000 | 53000 | 45000 | 67000 | 52 | 179 | 377 |
| 7004AC | 20 | 42 | 12 | 10.00 | 5.70 | 32000 | 48000 | 38000 | 56000 | 71 | 277 | 598 |
| 7005C | 25 | 47 | 12 | 14.60 | 9.15 | 30000 | 45000 | 38000 | 56000 | 74 | 254 | 533 |
| 7005AC | 25 | 47 | 12 | 13.70 | 8.65 | 28000 | 43000 | 34000 | 50000 | 101 | 384 | 828 |
| 7006C | 30 | 55 | 13 | 15.00 | 10.20 | 26000 | 40000 | 32000 | 48000 | 75 | 260 | 545 |
| 7006AC | 30 | 55 | 13 | 14.30 | 9.80 | 24000 | 38000 | 28000 | 43000 | 102 | 397 | 861 |
| 7007C | 35 | 62 | 14 | 19.00 | 13.70 | 22000 | 36000 | 28000 | 43000 | 97 | 333 | 697 |
| 7007AC | 35 | 62 | 14 | 18.30 | 12.90 | 20000 | 34000 | 24000 | 38000 | 136 | 518 | 1116 |
| 7008C | 40 | 68 | 15 | 20.40 | 16.00 | 20000 | 34000 | 26000 | 40000 | 102 | 353 | 743 |
| 7008AC | 40 | 68 | 15 | 19.60 | 15.00 | 19000 | 32000 | 22000 | 36000 | 142 | 547 | 1180 |
