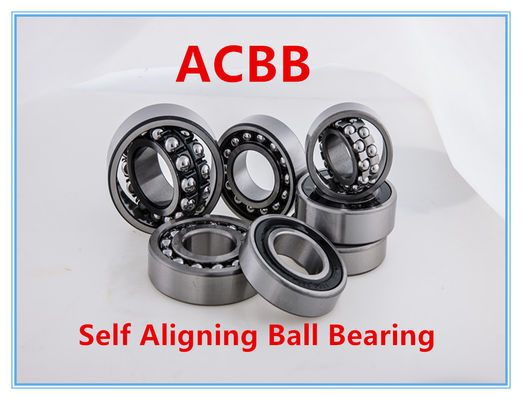

Bore Size 5 to 80mm Self-aligning Ball Bearing Incorporating Dynamic Load 8710 Suitable for Various Mechanical Systems

Product Description:

The Self-aligning Ball Bearing, model 22322, is a high-performance bearing designed to provide exceptional reliability and efficiency in various mechanical applications. This particular bearing is engineered to accommodate misalignment between the shaft and housing, making it an ideal choice for systems where shaft deflection or mounting errors may occur. Its self-aligning capability ensures smooth operation, reduces wear, and extends the service life of the machinery it supports.

One of the key features of the Self-aligning Ball Bearing is its ability to handle dynamic loads effectively. With a dynamic load rating of 8710, this bearing is capable of supporting significant radial and axial forces while maintaining optimal performance. This makes it suitable for use in heavy-duty equipment and applications that demand durability under varying load conditions.

The design of the Self-aligning Spherical Ball Bearing incorporates two rows of balls and a common sphered raceway in the outer ring. This unique configuration allows the bearing to compensate for angular misalignments naturally, without compromising the bearing’s integrity or operational efficiency. The self-aligning feature is particularly beneficial in applications where shaft deflection or installation errors might otherwise cause premature bearing failure.

With a thickness of 12 mm, this Self-aligning Ball Bearing is compact yet robust, providing a balance between size and strength. Its dimensions make it versatile for use in a wide range of machinery, from industrial equipment to automotive components. The thickness contributes to the bearing’s ability to withstand substantial loads while maintaining a low profile, which is essential for applications with space constraints.

Model 22322 exemplifies the advanced engineering behind Self-aligning Ball Bearings, offering enhanced performance in demanding environments. The bearing’s construction materials and precision manufacturing processes ensure high resistance to wear, corrosion, and fatigue. This results in reduced maintenance requirements and longer operational cycles, translating to cost savings and improved productivity for users.

Self-aligning Ball Bearings are renowned for their ability to simplify installation and reduce the need for precise shaft alignment. This not only saves time during assembly but also minimizes the risk of damage caused by misalignment during operation. The self-aligning feature allows the bearing to adapt dynamically to angular variations, thus protecting the machinery from undue stress and vibration.

In summary, the Self-aligning Ball Bearing model 22322 is an exceptional component that combines durability, efficiency, and adaptability. Its dynamic load capacity of 8710, coupled with a compact thickness of 12 mm, makes it a reliable choice for engineers seeking a bearing that can endure challenging conditions while maintaining smooth and stable operation. Whether used in industrial machinery, automotive systems, or other mechanical applications, this Self-aligning Spherical Ball Bearing ensures long-lasting performance and operational excellence.

Choosing the Self-aligning Ball Bearing means investing in a product designed to meet the rigorous demands of modern machinery. Its ability to self-correct alignment issues, handle substantial dynamic loads, and maintain structural integrity under stress makes it indispensable in a wide array of engineering solutions. This bearing not only enhances machine reliability but also contributes to overall system efficiency, making it a vital component in the pursuit of mechanical excellence.

Features:

• Product Name: Self-aligning Ball Bearing
• Also known as Self-adjusting Ball Bearing for enhanced performance
• Dynamic Load Capacity: 8710
• Bore Size Range: 5 - 80mm
• Cage Material Options: Pressed Steel, Brass, or Polyamide
• Packaging Options: Industrial, Individual, or Customized
• Designed as a Self-aligning Ball Bearing to accommodate misalignment and shaft deflection

Technical Parameters:

Applications:

The Self-aligning Ball Bearing, with an external diameter of 75 mm and an internal diameter of 32 mm, is a versatile and reliable component designed to accommodate misalignment up to 3 degrees. This unique capability makes the Self-aligning Spherical Ball Bearing an ideal choice for various applications where shaft deflections or mounting errors are common. Its dynamic load rating of 8710 N ensures excellent performance under substantial operational stresses, providing durability and longevity in demanding environments.

One of the primary application occasions for the Self-aligning Ball Bearing is in agricultural machinery. In these settings, equipment often operates on uneven terrain, causing shaft misalignments. The self-adjusting ball bearing’s ability to compensate for angular misalignment prevents premature bearing failure and maintains smooth operation. Similarly, the bearing is widely used in conveyor systems where shafts may experience slight misalignments due to structural flexing or thermal expansion, ensuring consistent and efficient material handling.

Industrial electric motors and pumps also commonly employ the Self-aligning Spherical Ball Bearing. These devices frequently encounter shaft deflections during operation, and the bearing’s self-aligning feature helps maintain optimal alignment without requiring precise installation. This reduces maintenance efforts and extends the service life of the machinery. Additionally, the bearing’s robust dynamic load capacity supports high-speed rotations and heavy loads, making it suitable for various mechanical drives and gearboxes.

In the automotive industry, the self-adjusting ball bearing is utilized in components such as transmissions and differentials where slight misalignments can occur due to manufacturing tolerances or operational stresses. Its ability to accommodate misalignment up to 3 degrees ensures reliable performance and helps reduce vibrations and noise. Moreover, the bearing is advantageous in construction equipment, where shocks and heavy loads are common, further demonstrating its versatility across diverse mechanical applications.

Overall, the Self-aligning Ball Bearing is an essential component for applications requiring reliable performance under misalignment conditions. Its combination of precise dimensions, self-adjusting capability, and robust dynamic load rating makes it an excellent choice for agricultural machinery, conveyors, electric motors, automotive components, and construction equipment. By using this bearing, engineers can achieve enhanced operational stability, reduced maintenance costs, and improved equipment lifespan.

Customization:

Our Self-aligning Ball Bearing product, model 22322, offers customizable options to meet your specific needs. With an outside diameter ranging from 19mm to 170mm and a consistent thickness of 12mm, we provide flexibility in the width, which commonly varies between 7mm and 40mm. This allows you to tailor the Self-aligning Spherical Ball Bearing to fit your precise application requirements. Whether you need adjustments in size or specifications, our Self-aligning Roller Bearing customization services ensure optimal performance and reliability. Trust our expertise to deliver a Self-aligning Spherical Ball Bearing that perfectly matches your operational demands.

Support and Services:

Our Self-aligning Ball Bearings are designed to accommodate misalignment and provide smooth, reliable operation in various applications. To ensure optimal performance and longevity of your bearings, please follow the recommended installation and maintenance guidelines.

Installation: Before installing the bearing, make sure the housing and shaft are clean and free from any debris or damage. Use appropriate tools to avoid applying excessive force during mounting. Ensure correct alignment to prevent uneven load distribution.

Lubrication: Proper lubrication is crucial for the bearing's performance. Use the lubricant specified for your operating conditions, and re-lubricate at intervals recommended based on speed, load, and environmental factors. Avoid contamination of the lubricant by dirt or moisture.

Maintenance: Regularly inspect the bearing for signs of wear, noise, or vibration. Check for any misalignment or shaft deflection that may affect bearing operation. Replace the bearing promptly if any damage or significant wear is detected to prevent further equipment damage.

Troubleshooting: Common issues with self-aligning ball bearings include noise, overheating, and premature wear. These may result from improper installation, inadequate lubrication, contamination, or excessive load. Address these factors promptly to maintain bearing performance.

For detailed technical information, installation instructions, and maintenance tips, please refer to the product manual or technical datasheet provided with your bearing. Our technical support team is available to assist with any questions regarding product selection, application, and troubleshooting.

Packing and Shipping:

Our Self-aligning Ball Bearings are carefully packaged to ensure maximum protection during transit. Each bearing is individually wrapped in anti-corrosion paper and placed in a sturdy box to prevent movement and damage. Multiple boxes are then securely packed into a reinforced carton with cushioning materials to absorb shocks and vibrations.

For shipping, we offer various options including air freight, sea freight, and express courier services to meet your delivery requirements. All shipments are tracked and insured to guarantee safe and timely arrival. We comply with international shipping standards to ensure that your Self-aligning Ball Bearings reach you in perfect condition.

FAQ:

Q1: What is a self-aligning ball bearing?

A1: A self-aligning ball bearing is a type of bearing designed to accommodate misalignment between the shaft and the housing. It features two rows of balls and a common concave spherical raceway in the outer ring, allowing the inner ring and shaft to rotate freely even if they are not perfectly aligned.

Q2: What are the typical applications of self-aligning ball bearings?

A2: Self-aligning ball bearings are commonly used in applications where shaft deflection or misalignment is expected, such as agricultural machinery, textile equipment, conveyors, and fans. Their design helps reduce friction and wear in these conditions.

Q3: What materials are self-aligning ball bearings made from?

A3: These bearings are typically made from high-quality steel for durability and wear resistance. The balls and races are often made from chrome steel, while some versions may use stainless steel or ceramic materials for specialized applications.

Q4: How do self-aligning ball bearings handle misalignment?

A4: The outer ring of a self-aligning ball bearing has a spherical raceway that allows the inner ring and ball assembly to rotate at a slight angle relative to the outer ring. This design compensates for shaft misalignment without causing additional stress or reducing bearing life.

Q5: What lubrication methods are recommended for self-aligning ball bearings?

A5: Self-aligning ball bearings can be lubricated with grease or oil, depending on the application. Proper lubrication reduces friction and wear, ensures smooth operation, and extends bearing life. It is important to follow manufacturer guidelines on lubrication intervals and types.
