Product Details:
|
| Product Name: | Angular Contact Ball Bearing | Model Number: | HYKH6012CTA-2RZ/P4 DT*DB |
|---|---|---|---|
| Characteristic: | Super High Speed | Rotational Speed: | 14000RPM-16000RPM |
| Angle: | C/AC/A5/E/A/B | Preload: | Light Preload/Pre-tension In The Middle |
| Rolling Body: | Ceramic Ball | Sealing Structure: | Double-sided Seal |
| High Light: | 16000RPM Ceramic Ball Bearings,14000RPM Ceramic Ball Bearings,high speed precision ceramic balls |
||

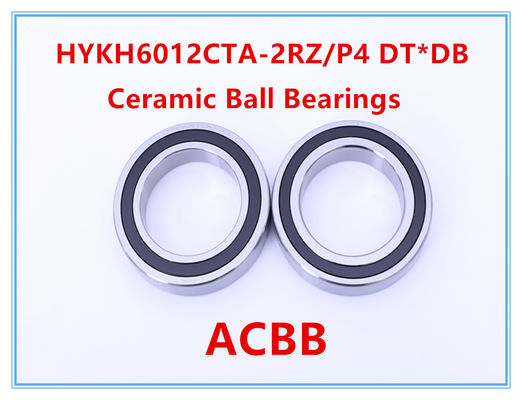

Angular Contact Ball BearingHYKH6012CTA -2RZ /P4DT*DB is mainly used in CNC machining center machine tools and CNC machine tool spindle. 14,000 to 16,000 rpm. Imported ceramic ball, Kluberspeed BF72-23 oil, double-sealed structure, imported materials, etc. .
| Ultra-high speed angular contact ball bearing made of imported materials | |||||||||||||
| Bearing No | ACBB model | ACBB model | GMN model | GMN model | Dimensions(mm) | (KN) BasicRatedload | (RPM) Limitingspeed | Ceramic Ball(RPM) Limitingspeed | |||||
| Steel Ball | Ceramic Ball | Steel Ball | Ceramic Ball | d | D | B | Cr(KN) | Cor(KN) | Oil | Grease | Oil | Grease | |
| 7002C | BH7002CTA 2RZ/P4 DT | BH7002CTA 2RZ/P4 HQ1 DT | KH6002 2RZ CTA/P4 DT | HYKH6002 2RZ CTA/P4 DT | 15 | 32 | 9 | 6.20 | 3.40 | 60000 | 70000 | 76000 | 85000 |
| 7003C | BH7003CTA 2RZ/P4 DT | BH7003CTA 2RZ/P4 HQ1 DT | KH6003 2RZ CTA/P4 DT | HYKH6003 2RZ CTA/P4 DT | 17 | 35 | 10 | 8.65 | 4.90 | 46000 | 65000 | 70000 | 80000 |
| 7004C | BH7004CTA 2RZ/P4 DT | BH7004CTA 2RZ/P4 HQ1 DT | KH6004 2RZ CTA/P4 DT | HYKH6004 2RZ CTA/P4 DT | 20 | 42 | 12 | 10.40 | 6.00 | 40000 | 56000 | 60000 | 70000 |
| 7005C | BH7005CTA 2RZ/P4 DT | BH7005CTA 2RZ/P4 HQ1 DT | KH6005 2RZ CTA/P4 DT | HYKH6005 2RZ CTA/P4 DT | 25 | 47 | 12 | 14.60 | 9.15 | 30000 | 45000 | 48000 | 65000 |
| 7006C | BH7006CTA 2RZ/P4 DT | BH7006CTA 2RZ/P4 HQ1 DT | KH6006 2RZ CTA/P4 DT | HYKH6006 2RZ CTA/P4 DT | 30 | 55 | 13 | 15.00 | 10.20 | 26000 | 40000 | 40000 | 48000 |
| 7007C | BH7007CTA 2RZ/P4 DT | BH7007CTA 2RZ/P4 HQ1 DT | KH6007 2RZ CTA/P4 DT | HYKH6007 2RZ CTA/P4 DT | 35 | 62 | 14 | 19.00 | 13.70 | 22000 | 36000 | 36000 | 43000 |
| 7008C | BH7008CTA 2RZ/P4 DT | BH7008CTA 2RZ/P4 HQ1 DT | KH6008 2RZ CTA/P4 DT | HYKH6008 2RZ CTA/P4 DT | 40 | 68 | 15 | 20.40 | 16.00 | 20000 | 34000 | 30000 | 40000 |
| 7009C | BH7009CTA 2RZ/P4 DT | BH7009CTA 2RZ/P4 HQ1 DT | KH6009 2RZ CTA/P4 DT | HYKH6009 2RZ CTA/P4 DT | 45 | 75 | 16 | 27.50 | 21.20 | 18000 | 30000 | 24000 | 38000 |
| 7010C | BH7010CTA 2RZ/P4 DT | BH7010CTA 2RZ/P4 HQ1 DT | KH6010 2RZ CTA/P4 DT | HYKH6010 2RZ CTA/P4 DT | 50 | 80 | 16 | 28.50 | 22.80 | 17000 | 28000 | 22000 | 36000 |
| 7011C | BH7011CTA 2RZ/P4 DT | BH7011CTA 2RZ/P4 HQ1 DT | KH6011 2RZ CTA/P4 DT | HYKH6011 2RZ CTA/P4 DT | 55 | 90 | 18 | 38.00 | 31.00 | 15000 | 24000 | 19000 | 32000 |
| 7012C | BH7012CTA 2RZ/P4 DT | BH7012CTA 2RZ/P4 HQ1 DT | KH6012 2RZ CTA/P4 DT | HYKH6012 2RZ CTA/P4 DT | 60 | 95 | 18 | 39.00 | 33.50 | 14000 | 22000 | 18000 | 30000 |
| 7013C | BH7013CTA 2RZ/P4 DT | BH7013CTA 2RZ/P4 HQ1 DT | KH6013 2RZ CTA/P4 DT | HYKH6013 2RZ CTA/P4 DT | 65 | 100 | 18 | 40 | 35.5 | 13000 | 20000 | 17000 | 28000 |
| 7014C | BH7014CTA 2RZ/P4 DT | BH7014CTA 2RZ/P4 HQ1 DT | KH6014 2RZ CTA/P4 DT | HYKH6014 2RZ CTA/P4 DT | 70 | 110 | 20 | 50 | 43 | 12000 | 19000 | 16000 | 26000 |
| 7204C | BH7204CTA 2RZ/P4 DT | BH7204CTA 2RZ/P4 HQ1 DT | KH204 2RZ CTA/P4 DT | HYKH6204 2RZ CTA/P4 DT | 20 | 47 | 14 | 14.6 | 8.15 | 32000 | 48000 | 43000 | 52000 |
| 7205C | BH7205CTA 2RZ/P4 DT | BH7205CTA 2RZ/P4 HQ1 DT | KH205 2RZ CTA/P4 DT | HYKH6205 2RZ CTA/P4 DT | 25 | 52 | 15 | 15.6 | 9.3 | 28000 | 43000 | 40000 | 46000 |
| 7206C | BH7206CTA 2RZ/P4 DT | BH7206CTA 2RZ/P4 HQ1 DT | KH206 2RZ CTA/P4 DT | HYKH6206 2RZ CTA/P4 DT | 30 | 62 | 16 | 23.2 | 14.6 | 24000 | 36000 | 30000 | 42000 |
| 7207C | BH7207CTA 2RZ/P4 DT | BH7207CTA 2RZ/P4 HQ1 DT | KH207 2RZ CTA/P4 DT | HYKH6207 2RZ CTA/P4 DT | 35 | 72 | 17 | 25.5 | 18 | 20000 | 34000 | 26000 | 40000 |
| 7208C | BH7208CTA 2RZ/P4 DT | BH7208CTA 2RZ/P4 HQ1 DT | KH208 2RZ CTA/P4 DT | HYKH6208 2RZ CTA/P4 DT | 40 | 80 | 18 | 32 | 22.4 | 18000 | 30000 | 24000 | 36000 |
| 7209C | BH7209CTA 2RZ/P4 DT | BH7209CTA 2RZ/P4 HQ1 DT | KH209 2RZ CTA/P4 DT | HYKH6209 2RZ CTA/P4 DT | 45 | 85 | 19 | 33.5 | 24.5 | 17000 | 28000 | 22000 | 34000 |
| 7210C | BH7210CTA 2RZ/P4 DT | BH7210CTA 2RZ/P4 HQ1 DT | KH210 2RZ CTA/P4 DT | HYKH6210 2RZ CTA/P4 DT | 50 | 90 | 20 | 43 | 31.5 | 16000 | 26000 | 20000 | 30000 |
| 7211C | BH7211CTA 2RZ/P4 DT | BH7211CTA 2RZ/P4 HQ1 DT | KH211 2RZ CTA/P4 DT | HYKH6211 2RZ CTA/P4 DT | 55 | 100 | 21 | 46.5 | 37.5 | 14000 | 22000 | 18000 | 28000 |
| 7212C | BH7212CTA 2RZ/P4 DT | BH7212CTA 2RZ/P4 HQ1 DT | KH212 2RZ CTA/P4 DT | HYKH6212 2RZ CTA/P4 DT | 60 | 110 | 22 | 55 | 44 | 13000 | 20000 | 16000 | 24000 |
