7215 C P4 GA Angular Contact Ball Bearing

I'm Online Chat Now

7215 C P4 GA Angular Contact Ball Bearing

7215 C P4 GA   Angular Contact Ball Bearing
7215 C P4 GA   Angular Contact Ball Bearing
7215 C P4 GA   Angular Contact Ball Bearing 7215 C P4 GA   Angular Contact Ball Bearing 7215 C P4 GA   Angular Contact Ball Bearing 7215 C P4 GA   Angular Contact Ball Bearing

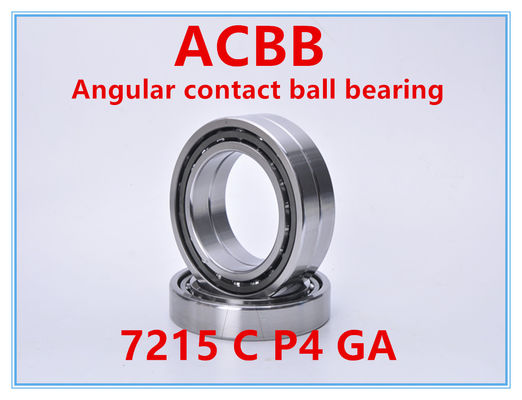

Large Image :  7215 C P4 GA Angular Contact Ball Bearing

Product Details:
Place of Origin: China
Brand Name: ACBB
Certification: ISO9001 IATF16949
Model Number: 7215 C P4 GA
Payment & Shipping Terms:
Minimum Order Quantity: 30 PCS
Packaging Details: Company brand packaging.

7215 C P4 GA Angular Contact Ball Bearing

Description
Product Name: Angular Contact Ball Bearing Model Number: 7215 C P4 GA
Characteristic: High Speed And High Rigidity Rotational Speed: 5000RPM-6000RPM
Angle: C/AC/A5/E/A Preload: Light Preload
Rolling Body: Steel Ball Holder: Nylon Holder

Angular Contact Ball Bearing 7215 C P4A GA (in addition to DB, DT, TBT, QBC and other matching methods) is mainly used on the spindle of CNC machine tools. The operating speed reaches 5000 to 6000 rpm. Imported materials, imported G5 grade steel balls, and Kluberspeed NBU15 grease are used, which have the advantages of high rigidity, high precision, high speed, etc.







72 Series Angular Contact Ball Bearing
Bearing No Dimensions(mm) (KN) BasicRatedload (RPM)
Ball speed limit
(RPM) Ceramic Ball limit speed (N) Preload
d D B Cr Cor Grease Lubrication Oil      Lubrication Grease Lubrication Oil     Lubrication A B C
7210C 50 90 20 43.00 31.50 16000 26000 20000 34000 242 792 1631
7210AC 50 90 20 40.50 30.50 14000 22000 17000 28000 355 1230 2593
7211C 55 100 21 46.50 37.50 14000 22000 18000 30000 261 849 1750
7211AC 55 100 21 44.00 35.50 13000 20000 15000 24000 381 1331 2797
7212C 60 110 22 55.00 44.00 13000 20000 16000 26000 315 1022 2100
7212AC 60 110 22 52.00 42.50 12000 19000 14000 22000 467 1599 3333
7213C 65 120 23 57.00 48.00 12000 19000 15000 24000 325 1051 2163
7213AC 65 120 23 54.00 45.50 11000 18000 13000 20000 482 1656 3455
7214C 70 125 24 69.50 58.50 11000 18000 14000 22000 404 1301 2664
7214AC 70 125 24 65.50 56.00 10000 17000 12000 19000 600 2030 4233
7215C 75 130 25 72.00 63.00 11000 18000 14000 22000 416 1346 2757
7215AC 75 130 25 68.00 60.00 9500 16000 12000 19000 619 2103 4389







7215 C P4 GA   Angular Contact Ball Bearing 0
