7207 C HC P4A GA Angular Contact Ball Bearing

I'm Online Chat Now

7207 C HC P4A GA Angular Contact Ball Bearing

7207 C HC P4A GA Angular Contact Ball Bearing
7207 C HC P4A GA Angular Contact Ball Bearing
7207 C HC P4A GA Angular Contact Ball Bearing 7207 C HC P4A GA Angular Contact Ball Bearing 7207 C HC P4A GA Angular Contact Ball Bearing 7207 C HC P4A GA Angular Contact Ball Bearing

Large Image :  7207 C HC P4A GA Angular Contact Ball Bearing

Product Details:
Place of Origin: China
Brand Name: ACBB
Certification: ISO9001 IATF16949
Model Number: 7207 C HC P4A GA
Payment & Shipping Terms:
Minimum Order Quantity: 20 PCS
Packaging Details: Company brand packaging.

7207 C HC P4A GA Angular Contact Ball Bearing

Description
Product Name: Angular Contact Ball Bearing Product Model: 7207 C HC P4A GA
Characteristic: High Speed And High Rigidity Rotational Speed: 20000RPM-25000RPM
Angle: 15 Degree Preload: Light Preload
Rolling Body: Ceramic Ball Holder: Bakelite Holder
High Light:

7207 C HC P4A GA Angular Contact Ball Bearing

,

Angular Contact Ball Bearing 20000RPM

,

25000RPM angular contact bearing angle

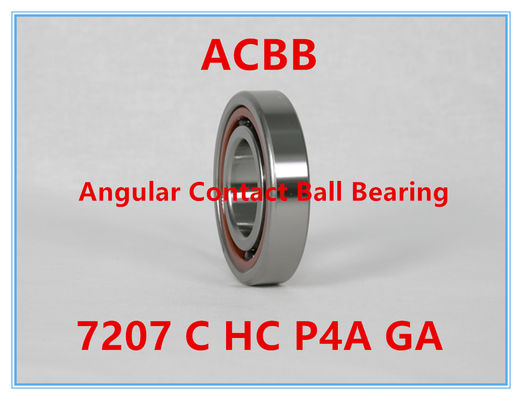

Ceramic Ball Bearings 7207 C HC P4A GA  is widely used in high-speed motor and CNC machining center spindles. The speed reaches 20000 to 25000 rpm. Si3N4 ceramic ball is used, and Kluberspeed BF72-23 is used as grease, with double sealing structure. It has the characteristics of high speed, high rigidity, low temperature rise and low noise.



Ultra-high speed angular contact ball bearing made of imported materials

Bearing No ACBB model ACBB model GMN model GMN model Dimensions(mm) (KN) BasicRatedload (RPM) Limitingspeed Ceramic Ball(RPM) Limitingspeed
Steel Ball Ceramic Ball Steel Ball Ceramic Ball d D B Cr(KN) Cor(KN) Oil Grease Oil Grease
7002C BH7002CTA 2RZ/P4 DT BH7002CTA 2RZ/P4 HQ1 DT KH6002 2RZ CTA/P4 DT HYKH6002 2RZ CTA/P4 DT 15 32 9 6.20 3.40 60000 70000 76000 85000
7003C BH7003CTA 2RZ/P4 DT BH7003CTA 2RZ/P4 HQ1 DT KH6003 2RZ CTA/P4 DT HYKH6003 2RZ CTA/P4 DT 17 35 10 8.65 4.90 46000 65000 70000 80000
7004C BH7004CTA 2RZ/P4 DT BH7004CTA 2RZ/P4 HQ1 DT KH6004 2RZ CTA/P4 DT HYKH6004 2RZ CTA/P4 DT 20 42 12 10.40 6.00 40000 56000 60000 70000
7005C BH7005CTA 2RZ/P4 DT BH7005CTA 2RZ/P4 HQ1 DT KH6005 2RZ CTA/P4 DT HYKH6005 2RZ CTA/P4 DT 25 47 12 14.60 9.15 30000 45000 48000 65000
7006C BH7006CTA 2RZ/P4 DT BH7006CTA 2RZ/P4 HQ1 DT KH6006 2RZ CTA/P4 DT HYKH6006 2RZ CTA/P4 DT 30 55 13 15.00 10.20 26000 40000 40000 48000
7007C BH7007CTA 2RZ/P4 DT BH7007CTA 2RZ/P4 HQ1 DT KH6007 2RZ CTA/P4 DT HYKH6007 2RZ CTA/P4 DT 35 62 14 19.00 13.70 22000 36000 36000 43000
7008C BH7008CTA 2RZ/P4 DT BH7008CTA 2RZ/P4 HQ1 DT KH6008 2RZ CTA/P4 DT HYKH6008 2RZ CTA/P4 DT 40 68 15 20.40 16.00 20000 34000 30000 40000
7009C BH7009CTA 2RZ/P4 DT BH7009CTA 2RZ/P4 HQ1 DT KH6009 2RZ CTA/P4 DT HYKH6009 2RZ CTA/P4 DT 45 75 16 27.50 21.20 18000 30000 24000 38000
7010C BH7010CTA 2RZ/P4 DT BH7010CTA 2RZ/P4 HQ1 DT KH6010 2RZ CTA/P4 DT HYKH6010 2RZ CTA/P4 DT 50 80 16 28.50 22.80 17000 28000 22000 36000
7011C BH7011CTA 2RZ/P4 DT BH7011CTA 2RZ/P4 HQ1 DT KH6011 2RZ CTA/P4 DT HYKH6011 2RZ CTA/P4 DT 55 90 18 38.00 31.00 15000 24000 19000 32000
7012C BH7012CTA 2RZ/P4 DT BH7012CTA 2RZ/P4 HQ1 DT KH6012 2RZ CTA/P4 DT HYKH6012 2RZ CTA/P4 DT 60 95 18 39.00 33.50 14000 22000 18000 30000
7013C BH7013CTA 2RZ/P4 DT BH7013CTA 2RZ/P4 HQ1 DT KH6013 2RZ CTA/P4 DT HYKH6013 2RZ CTA/P4 DT 65 100 18 40 35.5 13000 20000 17000 28000
7014C BH7014CTA 2RZ/P4 DT BH7014CTA 2RZ/P4 HQ1 DT KH6014 2RZ CTA/P4 DT HYKH6014 2RZ CTA/P4 DT 70 110 20 50 43 12000 19000 16000 26000
7204C BH7204CTA 2RZ/P4 DT BH7204CTA 2RZ/P4 HQ1 DT KH204 2RZ CTA/P4 DT HYKH6204 2RZ CTA/P4 DT 20 47 14 14.6 8.15 32000 48000 43000 52000
7205C BH7205CTA 2RZ/P4 DT BH7205CTA 2RZ/P4 HQ1 DT KH205 2RZ CTA/P4 DT HYKH6205 2RZ CTA/P4 DT 25 52 15 15.6 9.3 28000 43000 40000 46000
7206C BH7206CTA 2RZ/P4 DT BH7206CTA 2RZ/P4 HQ1 DT KH206 2RZ CTA/P4 DT HYKH6206 2RZ CTA/P4 DT 30 62 16 23.2 14.6 24000 36000 30000 42000
7207C BH7207CTA 2RZ/P4 DT BH7207CTA 2RZ/P4 HQ1 DT KH207 2RZ CTA/P4 DT HYKH6207 2RZ CTA/P4 DT 35 72 17 25.5 18 20000 34000 26000 40000
7208C BH7208CTA 2RZ/P4 DT BH7208CTA 2RZ/P4 HQ1 DT KH208 2RZ CTA/P4 DT HYKH6208 2RZ CTA/P4 DT 40 80 18 32 22.4 18000 30000 24000 36000
7209C BH7209CTA 2RZ/P4 DT BH7209CTA 2RZ/P4 HQ1 DT KH209 2RZ CTA/P4 DT HYKH6209 2RZ CTA/P4 DT 45 85 19 33.5 24.5 17000 28000 22000 34000
7210C BH7210CTA 2RZ/P4 DT BH7210CTA 2RZ/P4 HQ1 DT KH210 2RZ CTA/P4 DT HYKH6210 2RZ CTA/P4 DT 50 90 20 43 31.5 16000 26000 20000 30000
7211C BH7211CTA 2RZ/P4 DT BH7211CTA 2RZ/P4 HQ1 DT KH211 2RZ CTA/P4 DT HYKH6211 2RZ CTA/P4 DT 55 100 21 46.5 37.5 14000 22000 18000 28000
7212C BH7212CTA 2RZ/P4 DT BH7212CTA 2RZ/P4 HQ1 DT KH212 2RZ CTA/P4 DT HYKH6212 2RZ CTA/P4 DT 60 110 22 55 44 13000 20000 16000 24000


7207 C HC P4A GA Angular Contact Ball Bearing 0
