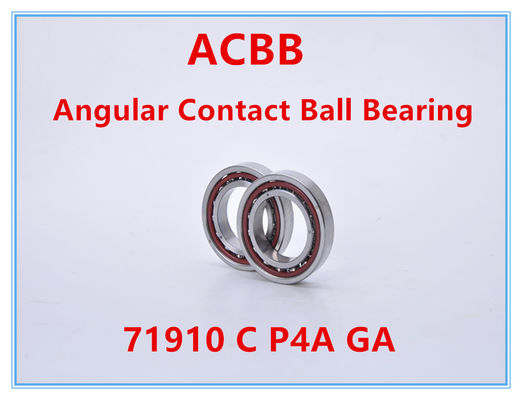

71910 C P4A GA Angular Contact Ball Bearing

I'm Online Chat Now

71910 C P4A GA Angular Contact Ball Bearing

71910 C P4A GA Angular Contact Ball Bearing
71910 C P4A GA Angular Contact Ball Bearing
71910 C P4A GA Angular Contact Ball Bearing 71910 C P4A GA Angular Contact Ball Bearing 71910 C P4A GA Angular Contact Ball Bearing 71910 C P4A GA Angular Contact Ball Bearing

Large Image :  71910 C P4A GA Angular Contact Ball Bearing

Product Details:
Place of Origin: China
Brand Name: ACBB
Certification: ISO9001 IATF16949
Model Number: 71910 C P4A GA
Payment & Shipping Terms:
Minimum Order Quantity: 50 PCS
Packaging Details: Company brand packaging.

71910 C P4A GA Angular Contact Ball Bearing

Description
Product Name: Angular Contact Ball Bearing Product Model: 71910 C P4A GA
Characteristic: High Speed And High Rigidity Rotational Speed: 15000RPM-18000RPM
Angle: 15 Degree Preload: Light Preload
Rolling Body: Steel Ball Holder: Bakelite Holder
High Light:

71910 C P4A GA Angular Contact Ball Bearing

,

Angular Contact Ball Bearing High Rigidity

,

15000RPM angular contact

Angular contact ball bearing 71910 C P4A GA (in addition to DB, DT, TBT, QBC and other matching methods) is mainly used on high-speed motor spindles. The operating speed reaches 15000 to 18000 rpm. Imported materials, imported G5 grade steel balls, and Kluberspeed NBU15 grease are used, which have the advantages of high rigidity, high precision, high speed, etc.





719 Series Angular Contact Ball Bearing
Bearing No Dimensions(mm) rsmin rs1min (KN) BasicRatedload (RPM)
Ball speed limit
(RPM) Ceramic Ball limit speed (N) Preload
d D B Cr Cor Grease Lubrication Oil Lubrication Grease Lubrication Oil Lubrication A B C
71904C 20 37 9 0.30 0.30 7.35 4.55 38000 56000 50000 75000 41 137 297
71904AC 20 37 9 0.30 0.30 6.95 4.40 36000 53000 43000 63000 38 172 390
71905C 25 42 9 0.30 0.30 8.15 5.70 32000 48000 43000 63000 40 141 326
71905AC 25 42 9 0.30 0.30 7.80 5.50 30000 45000 36000 53000 40 189 430
71906C 30 47 9 0.30 0.30 8.65 6.55 28000 43000 36000 53000 42 158 345
71906AC 30 47 9 0.30 0.30 8.15 6.30 26000 40000 32000 48000 40 194 445
71907C 35 55 10 0.60 0.60 11.80 9.50 24000 38000 32000 48000 61 209 481
71907AC 35 55 10 0.60 0.60 11.00 9.00 22000 36000 26000 40000 61 276 619
71908C 40 62 12 0.60 0.60 17.60 13.70 22000 36000 28000 43000 85 300 633
71908AC 40 62 12 0.60 0.60 16.60 13.20 20000 34000 24000 38000 112 450 984
71909C 45 68 12 0.60 0.60 18.60 15.60 19000 32000 24000 38000 89 315 667
71909AC 45 68 12 0.60 0.60 17.60 15.00 18000 30000 22000 36000 116 473 1038
71910C 50 72 12 0.60 0.60 19.00 16.60 18000 30000 22000 36000 90 321 679
71910AC 50 72 12 0.60 0.60 18.00 15.60 16000 26000 20000 34000 118 482 1059
