Product Details:
|
| Product Name: | Angular Contact Ball Bearing | Product Model: | 7001 C P4A GA |
|---|---|---|---|
| Characteristic: | High Speed And High Rigidity | Rotational Speed: | 50000RPM-56000RPM |
| Angle: | C/CDA/AC/A5/E | Preload: | Light Preload |
| Rolling Body: | Steel Ball | Holder: | Nylon Holder |

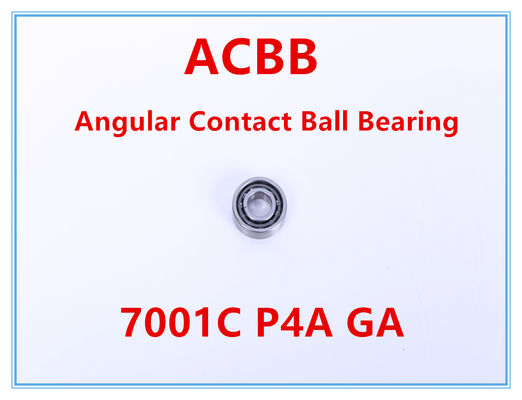

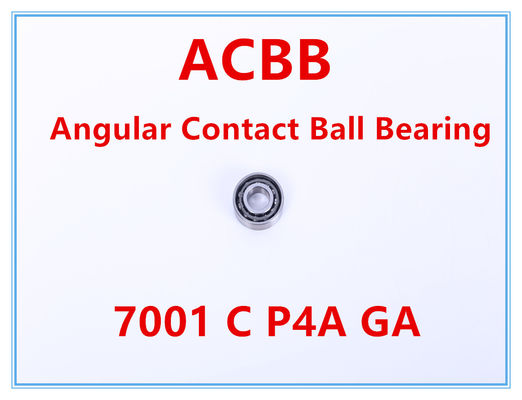

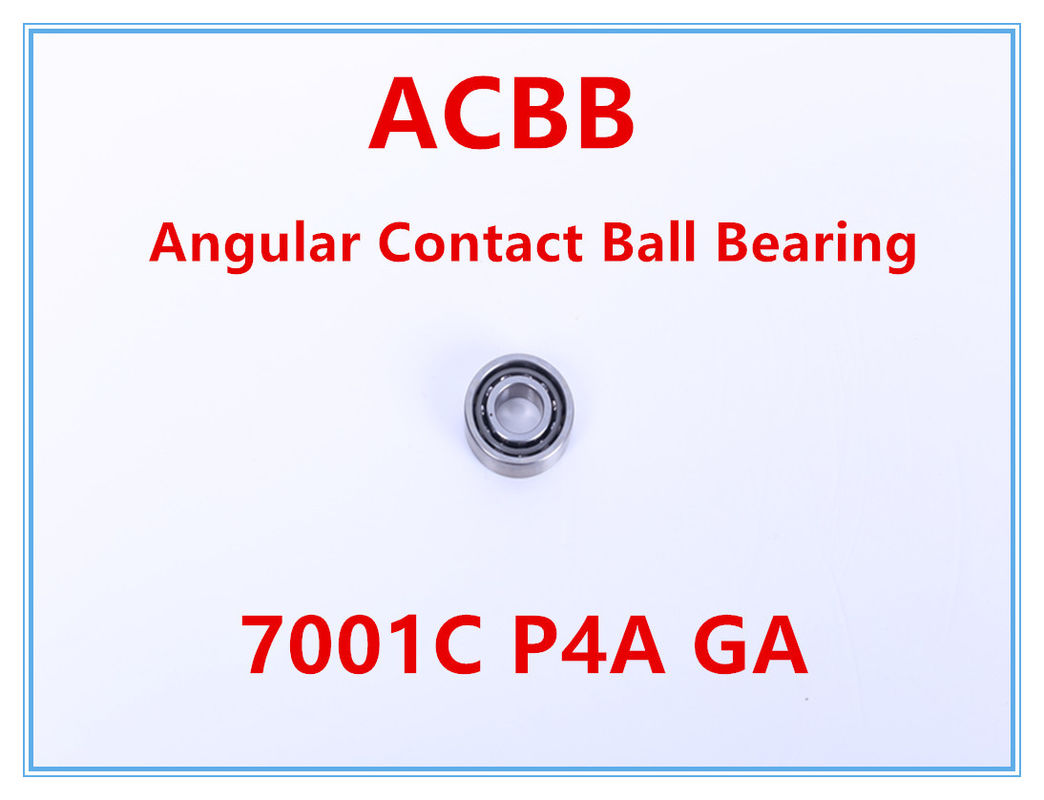

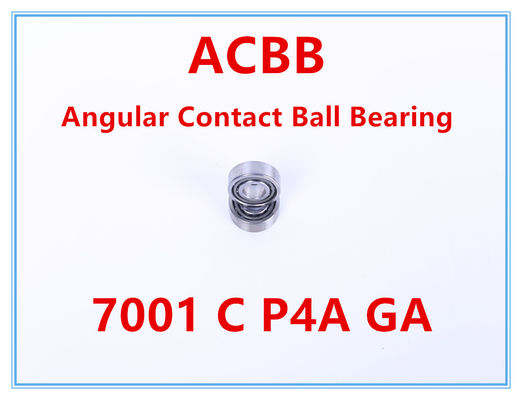

Angular contact ball bearing 7001 C P4A GA (in addition, DB, DT, TBT, QBC and other matching methods); The angles include C angle, ACD angle, A5 angle, E angle, etc. It is mainly used in CNC machine tool spindles, high-speed motors and high-speed electric spindles. The operating speed reaches 50000 to 56000 rpm. Imported materials, imported G5 grade steel balls, and Kluberspeed NBU15 grease are used, which have the advantages of high rigidity, high precision, high speed, etc.
| 70 Series Angular Contact Ball Bearing | ||||||||||||
| Bearing No | Dimensions(mm) | (KN) BasicRatedload | (RPM) Ball speed limit |
(RPM) Ceramic Ball limit speed | (N) Preload | |||||||
| d | D | B | Cr | Cor | Grease Lubrication | Oil Lubrication | Grease Lubrication | Oil Lubrication | A | B | C | |
| 7000C | 10 | 26 | 8 | 4.25 | 2.08 | 60000 | 90000 | 80000 | 130000 | 17 | 67 | 145 |
| 7000AC | 10 | 26 | 8 | 4.05 | 2.00 | 56000 | 85000 | 67000 | 100000 | 22 | 100 | 224 |
| 7001C | 12 | 28 | 8 | 4.75 | 2.60 | 56000 | 85000 | 70000 | 110000 | 19 | 74 | 161 |
| 7001AC | 12 | 28 | 8 | 4.55 | 2.50 | 50000 | 75000 | 60000 | 90000 | 23 | 110 | 250 |
| 7002C | 15 | 32 | 9 | 6.20 | 3.40 | 48000 | 70000 | 60000 | 90000 | 28 | 102 | 216 |
| 7002AC | 15 | 32 | 9 | 6.00 | 3.25 | 43000 | 63000 | 50000 | 75000 | 36 | 154 | 344 |
