Product Details:
Place of Origin: China
Brand Name: ACBB
Certification: ISO9001 IATF16949
Model Number: 71812 C P4A GA
Payment & Shipping Terms:
Minimum Order Quantity: 50 PCS
Packaging Details: Company brand packaging.

71812 C P4A GA

Description

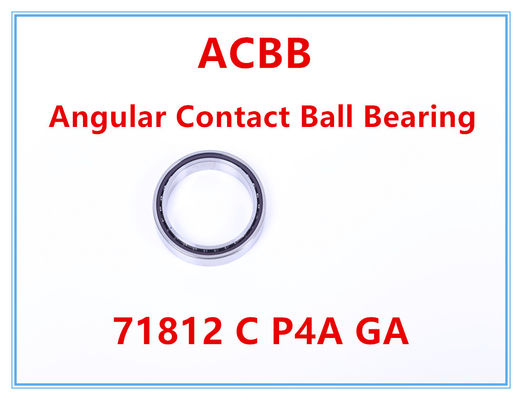

Product Name: Angular Contact Ball Bearing Product Model: 71812 C P4A GA
Characteristic: High Speed And High Rigidity Rotational Speed: 14000RPM-16000RPM
Angle: 15 Degree Preload: Light Preload
Rolling Body: Steel Ball Holder: Bakelite Holder

Angular Contact Ball Bearing 71812 C P4A GA (in addition to DB, DT, TBT, QBC and other matching methods) is mainly used on high-speed motor spindles. The operating speed reaches 14000 to 16000 rpm. Imported materials, imported G5 grade steel balls, and Kluberspeed NBU15 grease are used, which have the advantages of high rigidity, high precision, high speed, etc.





718 Series Angular Contact Ball Bearing
Bearing No Dimensions(mm) rsmin rs1min (KN) BasicRatedload (RPM)
Ball speed limit
(RPM) Ceramic Ball limit speed (N) Preload
d D B Cr Cor Grease Lubrication Oil Lubrication Grease Lubrication Oil Lubrication A B C
71808C 40 52 7 0.30 0.10 4.80 4.55 24000 38000 30000 45000 17 59 138
71808AC 40 52 7 0.30 0.10 4.55 4.25 22000 36000 26000 40000 17 75 200
71809C 45 58 7 0.30 0.10 7.20 6.95 22000 36000 28000 43000 22 98 221
71809AC 45 58 7 0.30 0.10 6.80 6.40 19000 32000 24000 38000 35 133 328
71810C 50 65 7 0.30 0.10 7.35 7.35 19000 32000 24000 38000 21 100 224
71810AC 50 65 7 0.30 0.10 6.95 6.80 17000 28000 20000 34000 35 135 333
71811C 55 72 9 0.30 0.10 10.20 10.20 17000 28000 22000 36000 35 147 326
71811AC 55 72 9 0.30 0.10 9.65 9.50 16000 26000 19000 32000 57 206 491
71812C 60 78 10 0.30 0.10 13.20 13.20 16000 26000 20000 34000 51 200 435
71812AC 60 78 10 0.30 0.10 12.20 12.20 14000 22000 17000 28000 80 280 649





71812 C P4A GA 0
